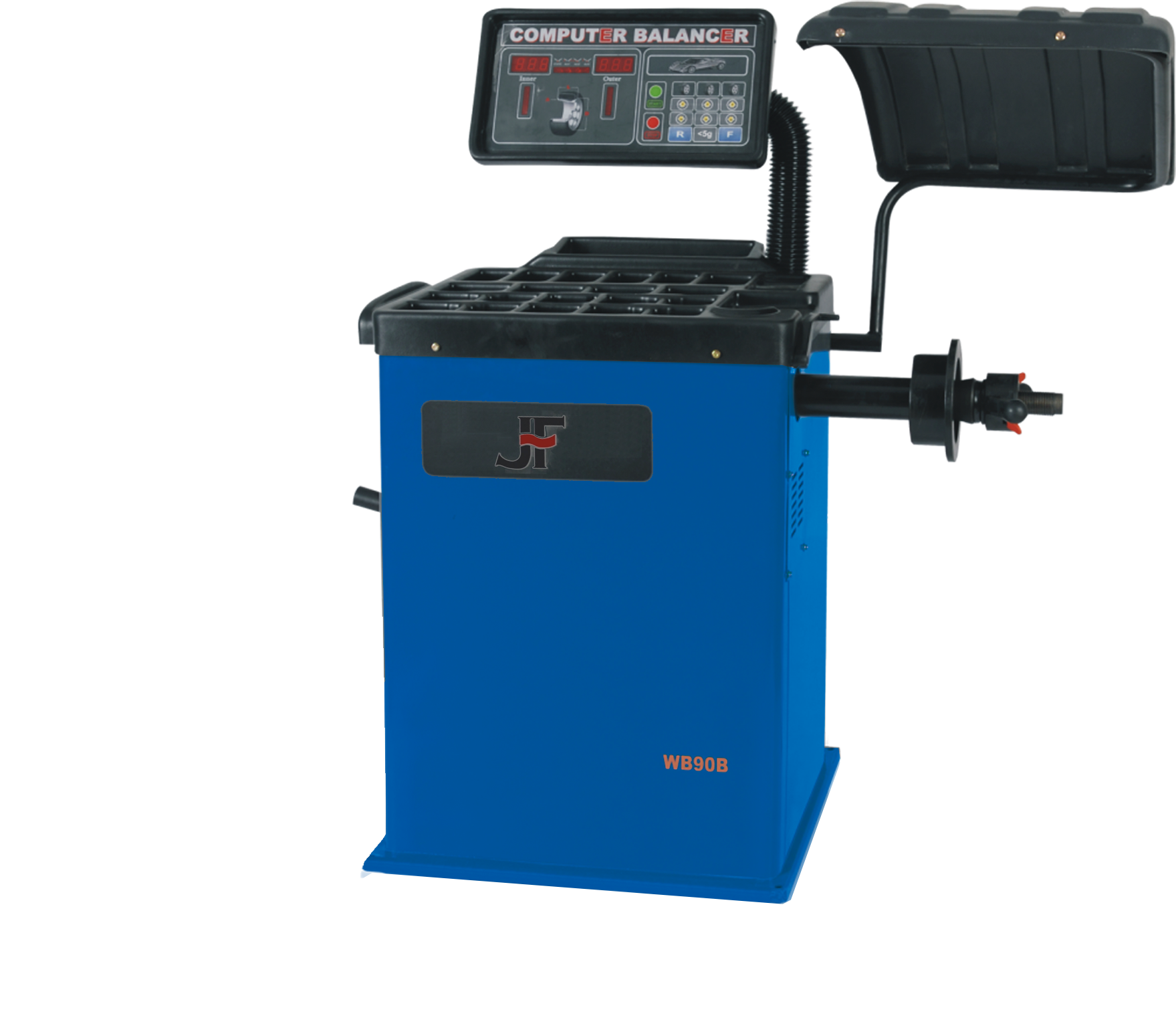

WB90B ELECTRIC
Model No.: WB90B
Rim Diam 10"-24" Max tire weight 70kg
Related Products
FEATURES
WB90B
-Electrical parts imported (High quality/capacity/stability microprocessor)
-Direct drive motor for fast cycle times
-Keypad entry and LED display
-Standard conversion functions (inch/millimeter/gram)
-Self-calibration and self-diagnostic functions
-Equipped with standard protection cover
-Comprehensive accessories
-Special wheel application kits available
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
WB90B
-Electrical parts imported (High quality/capacity/stability microprocessor)
-Direct drive motor for fast cycle times
-Keypad entry and LED display
-Standard conversion functions (inch/millimeter/gram)
-Self-calibration and self-diagnostic functions
-Equipped with standard protection cover
-Comprehensive accessories
-Special wheel application kits available
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
SPECIFICATIONS
| Description | WB90B |
| Rim diameter | 10”-24” |
| Max. tire weight | 70kg |
| Max. tire diameter | 1000mm |
| Tire width | 1.5”-16” |
| Rotation speed | 230r/min |
| Balance precision | +/-2g |
| Motor | 250w 220v 50hz |
| Net Weight | 93kg |
| Gross Weight | 123kg |
| Packing Meas. | 970”700”1105mm |
| Quantity in container | 20’/34pcs; 40’/72pcs |
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

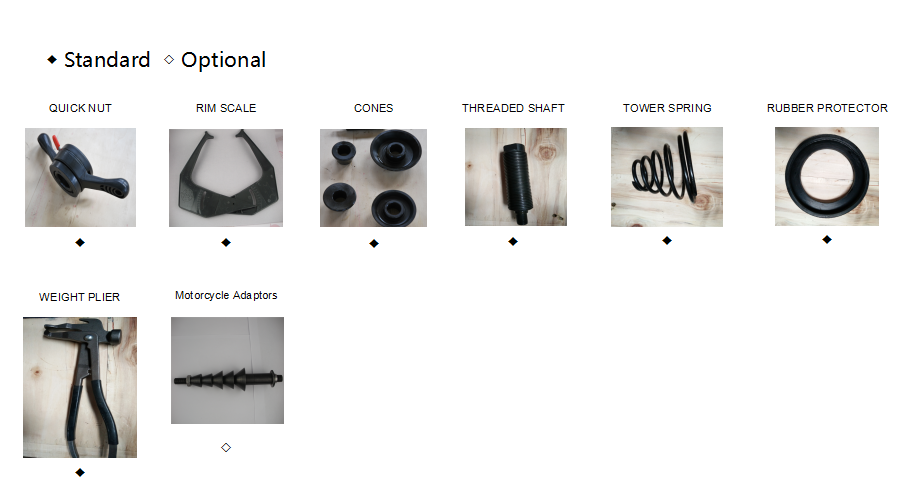

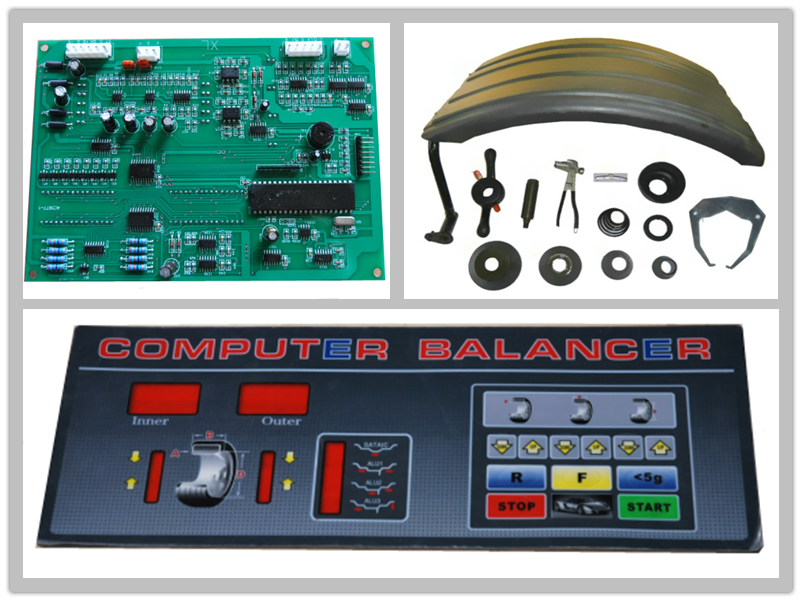

PARTS
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

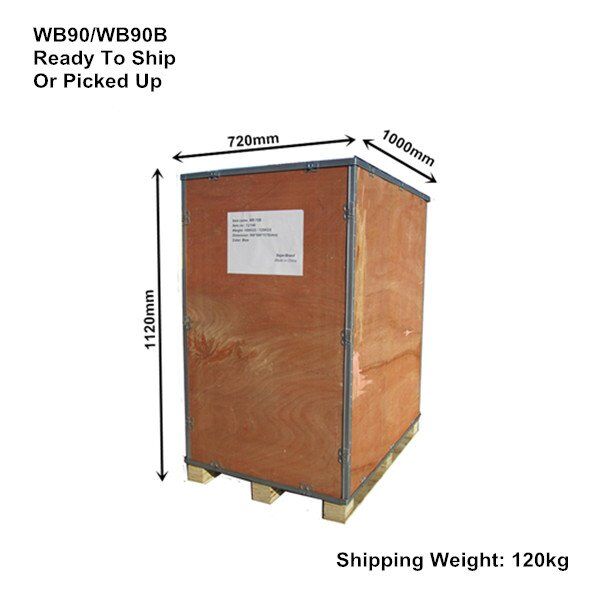

PACKAGE

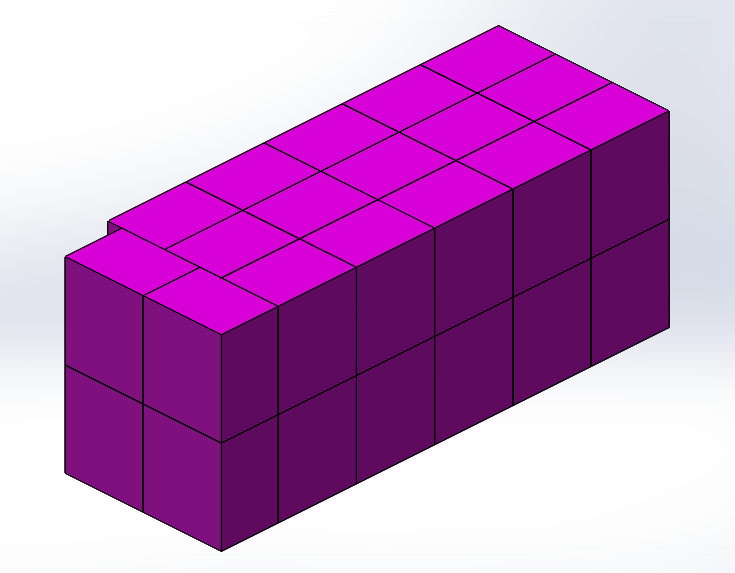

20' Container Load Solution(34 sets)

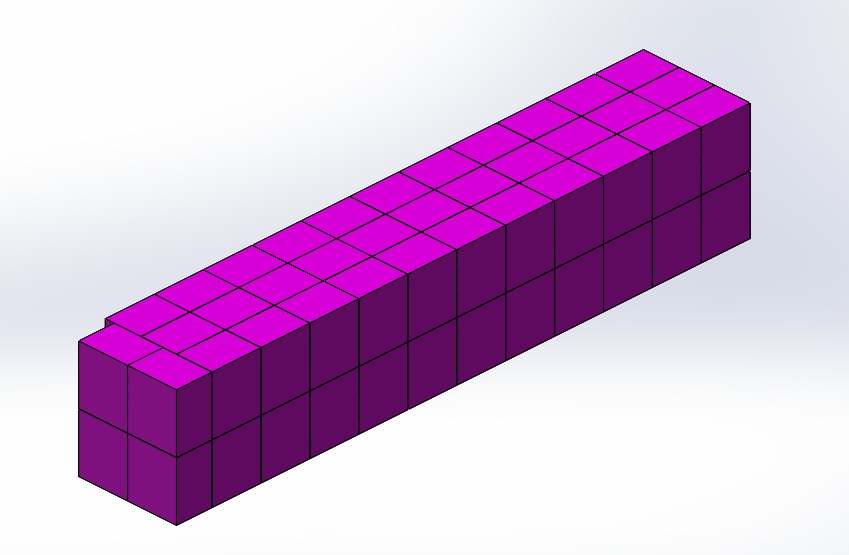

40' Container Load Solution(70 sets)
20' Container Load Solution(34 sets)
40' Container Load Solution(70 sets)
Click the image above to download manaul book for WB90B
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
VIDEO
________________________________________________________________________________________________________________
Catalogue
Catalogue
Click the image above to download catalogue for WB90B
