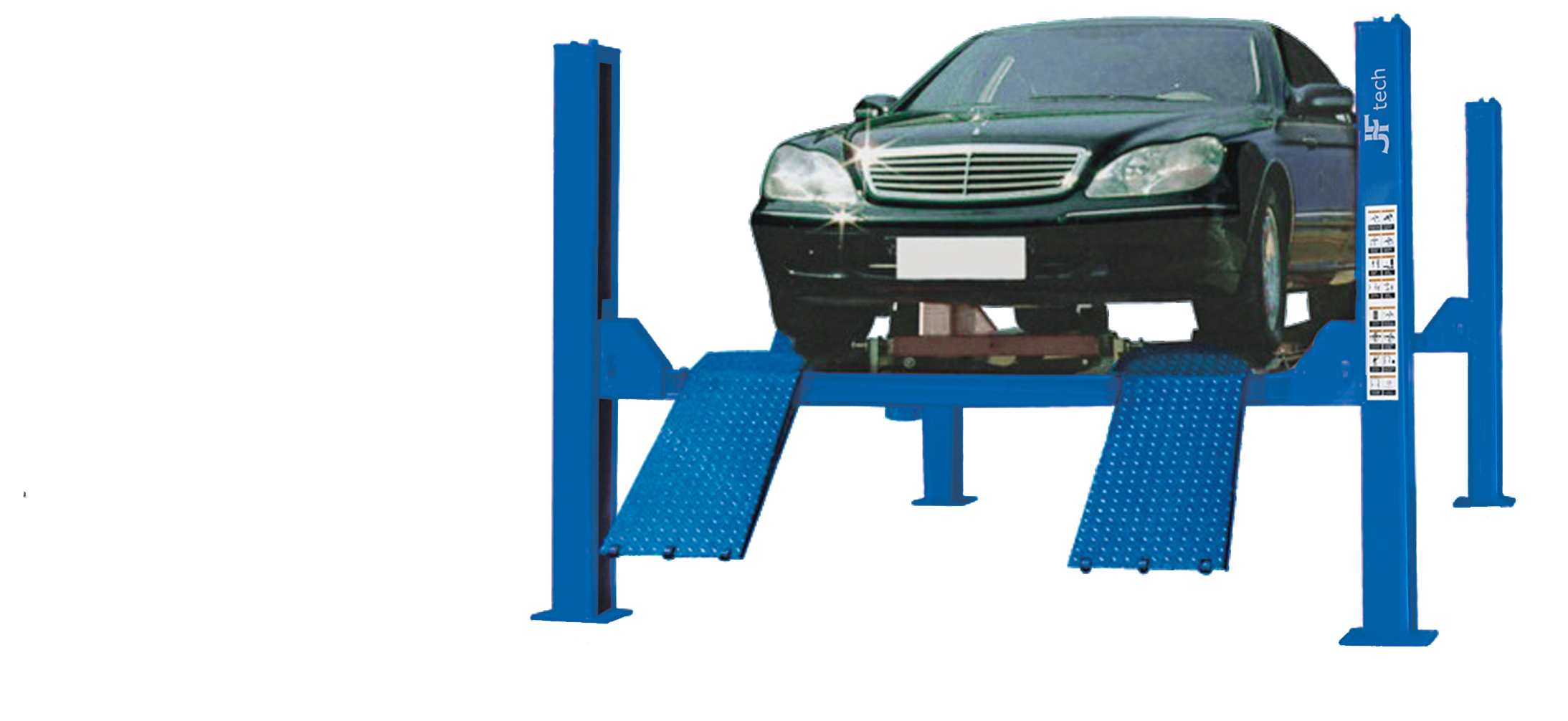

L-4-40B 4T ELECTRO-HYDRAULIC
Model No.: l-4-40B
Cable Lock Alignment Lift
Related Products
L-4-40B
· 4000 KG(9,000 LB). Capacity
· 1800mm(70 4/5”) max lifting height
· Ideal choice for wheel alignment
· Turntable & rear slide plate
· Integrating the advanced technology and popular types common in European countries.
· Featuring unique design
· Advanced workmanship
· Car maintenance , major repair work
· 4000 KG(9,000 LB). Capacity
· 1800mm(70 4/5”) max lifting height
· Ideal choice for wheel alignment
· Turntable & rear slide plate
· Integrating the advanced technology and popular types common in European countries.
· Featuring unique design
· Advanced workmanship
· Car maintenance , major repair work
________________________________________________________________________________________________________________

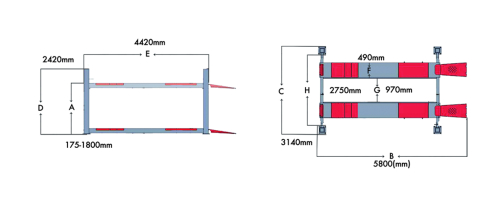

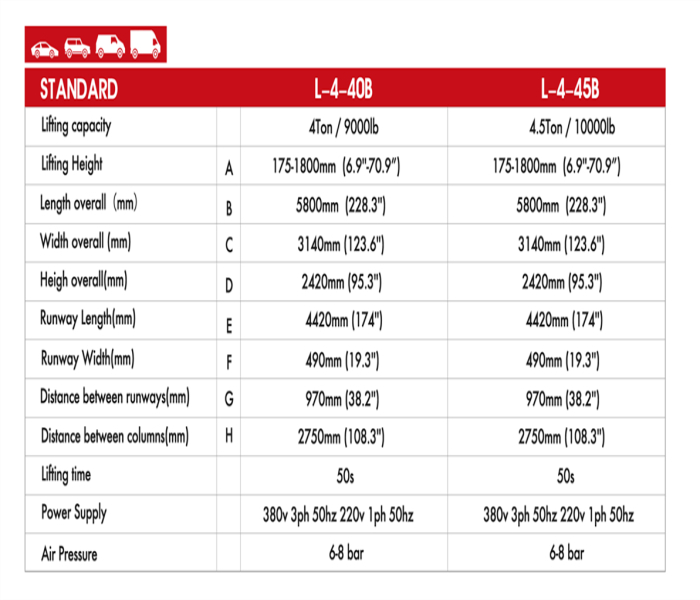

Specifications
Specifications
| Name | L-4-40B | |
| Lifting Capacity | 4000kg(9000lb) | |
| Lifting Height | A | 175-1800mm(6.9-70.9") |
| Length Overall | B | 5800mm(228.3) |
| Width Overall | C | 3140mm(123.6") |
| Heigh Overall | D | 2420mm(95.3") |
| Runway Length(mm) | E | 4420mm(174") |
| Runway Width(mm) | F | 490mm(19.3") |
| Distance between runways(mm) | G | 970mm(38.2”) |
| Distance between columns(mm) | H | 2750mm(108.3")) |
| Lifting Time | 50s | |
| Air Pressure | 6-8 bar | |
________________________________________________________________________________________________________________

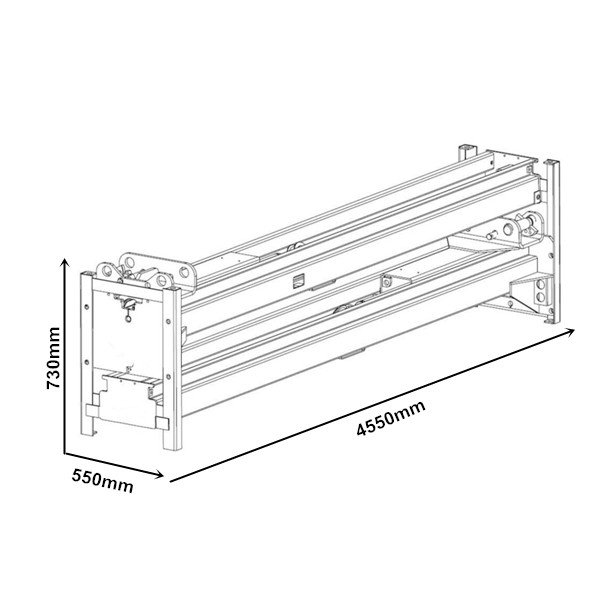

Package Size(MM)
a. Steel Stack(Lift main structure)
b. Carton(Power Unit)
________________________________________________________________________________________________________________
Optional Parts

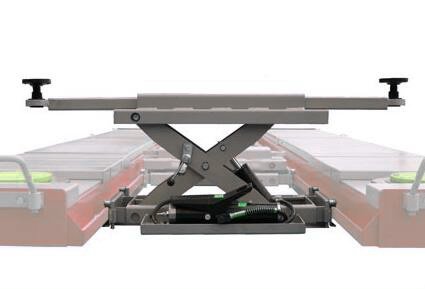

Rolling Jack
Optional Parts
Rolling Jack
________________________________________________________________________________________________________________
Manual
Click here to download manual book for L-4-40A
Ask our sales representitives for download password please. Thank you.
Manual
Click here to download manual book for L-4-40A
Ask our sales representitives for download password please. Thank you.
________________________________________________________________________________________________________________
Catalogue
Catalogue
Click here to download catalogue
Ask our sales representitives for download password please. Thank you.
