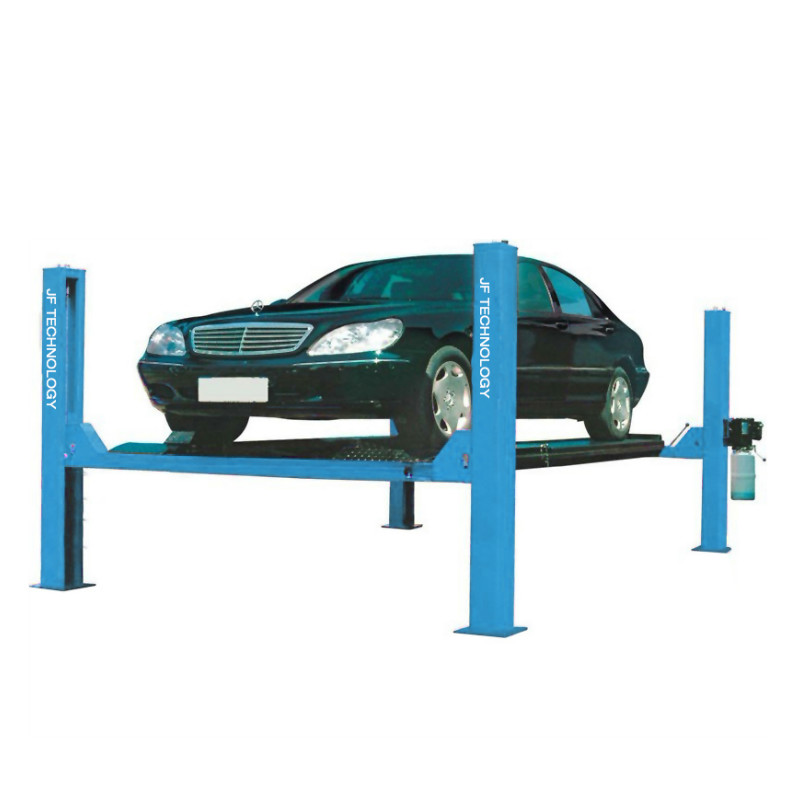

L-4-50B 5T ELECTRO-HYDRAULIC
Model No.: L-4-50B
Cable Drive Service Lift
L-4-50B
· 5000 KG(12,000 LB). Capacity
· 1800mm(70 4/5”) max lifting height
· Integrating the advanced technology and popular types common in European countries.
· Featuring unique design
· Advanced workmanship
· Car maintenance , major repair work
· 5000 KG(12,000 LB). Capacity
· 1800mm(70 4/5”) max lifting height
· Integrating the advanced technology and popular types common in European countries.
· Featuring unique design
· Advanced workmanship
· Car maintenance , major repair work
________________________________________________________________________________________________________________
Specifications:
Specifications:
| Name | L-4-50B | |
| Lifting Capacity | 5000kg(12000lb) | |
| Lifting Height | A | 245-1800mm(6.9-70.9") |
| Length Overall | B | 6235mm(228.3) |
| Width Overall | C | 3363mm(123.6") |
| Heigh Overall | D | 2220mm(95.3") |
| Runway Length(mm) | E | 5000mm(174") |
| Runway Width(mm) | F | 490mm(19.3") |
| Distance between runways(mm) | G | 990mm(38.2”) |
| Distance between columns(mm) | H | 2750mm(108.3")) |
| Lifting Time | 50s | |
| Air Pressure | 6-8 bar | |
________________________________________________________________________________________________________________
Package Size(MM)
a. Steel Stack(Lift main structure)
b. Carton(Power Unit)
________________________________________________________________________________________________________________
Manual
Click here to download manual book for L-4-50B
Ask our sales representitives for download password please. Thank you.
________________________________________________________________________________________________________________
Catalogue
Click here to download catalogue
Ask our sales representitives for download password please. Thank you.
Catalogue
Click here to download catalogue
Ask our sales representitives for download password please. Thank you.
