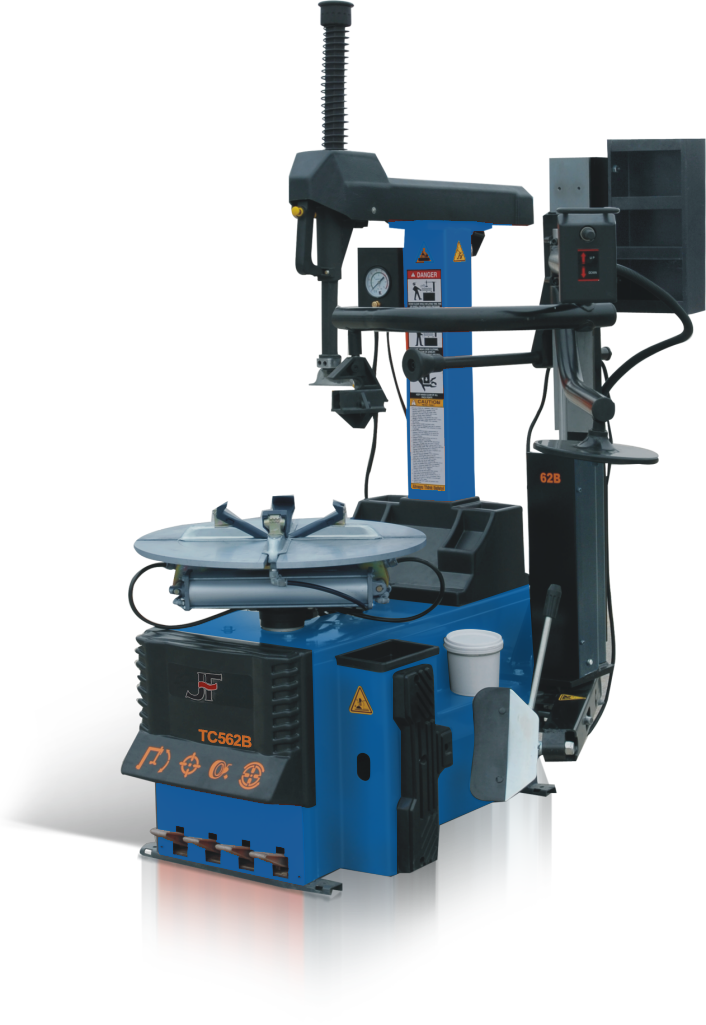

TC562B PNEUMATIC AUTO

Model No.: TC562B

Automatic model Range: 10"-24"

Related Products

TC562B
is a full-automatic tyre changer, economical  and perfect for high-volume

tire shops where large,low-profile tires are a growing part of your business.
Designed with the operator's comfort and efficiency in mind.This tyre changer has
many features including:

-Suitable for mountaing/demounting larger and wider tires

-High-performance on alloy wheels mountaing/demounting

-Clamping jaws and mounting/demounting head are made of high-quality steel

-Automatic push button up-down shift arm on the colum

-Simultaneous pneumatically horizontal/vertical arm locking

-Equipped with tilting colum

-Equipped with inflation gauge

-Equipped with bead breaker system extremelly versatile

-Equipped with adjustable internal/external wheel clamps

-Large turnable with high-quality cylinders and sealing parts

-Equipped with power assist bead roller

-Equipped with bead lifting disk

-Equipped with bead hold-down device

Features:



________________________________________________________________________________________________________________

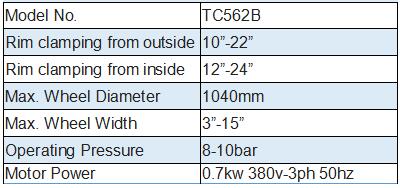

Specifications

Description TC562B
Rim clamping from outside           10”-22”
Rim clamping from inside 12”-24”
Max. Wheel Diameter                          1040mm
Max. Wheel width                               3”-15”
Operating Pressure                          8-10bar
Motor Power 0.75kw 380v 3ph 50hz
Packing Size 1150*820*970(0.91m3)
Net  Weight 351kg
Gross Weight 385kg
Quantity in container  20’/10  40’/22

________________________________________________________________________________________________________________

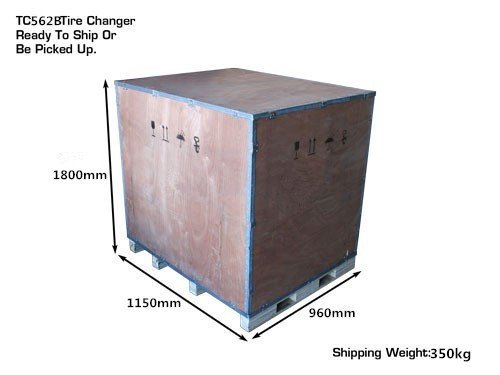

Package Size(MM)

________________________________________________________________________________________________________________

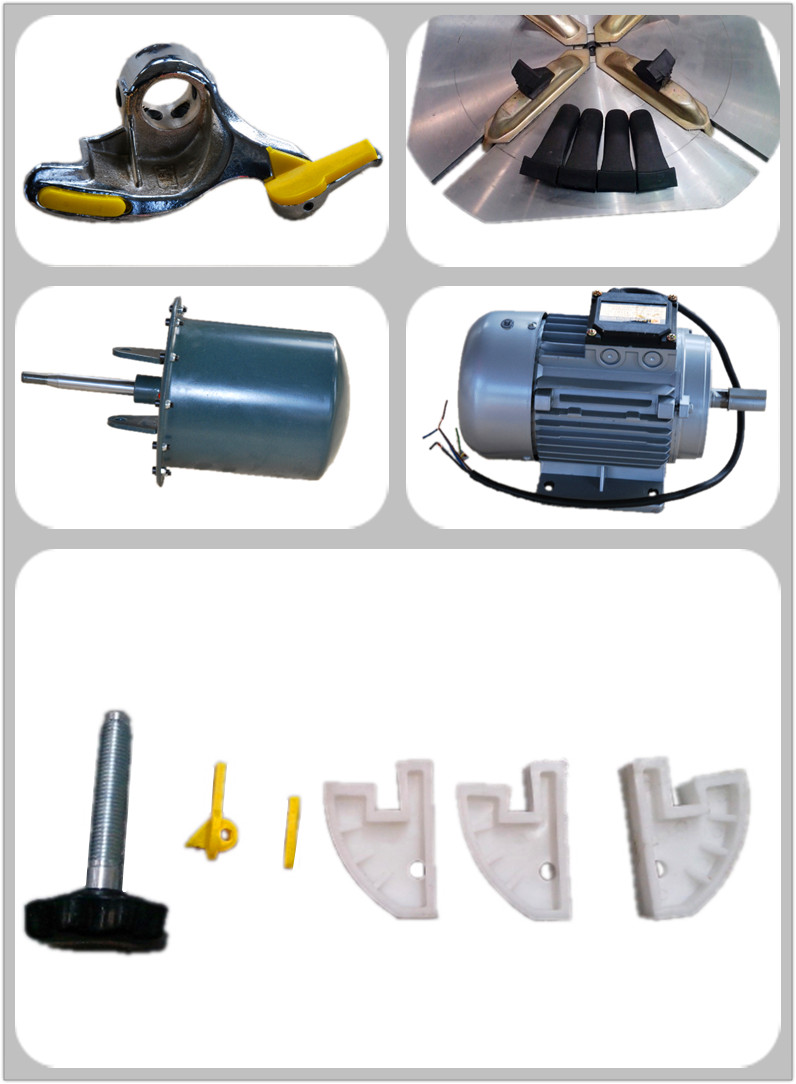

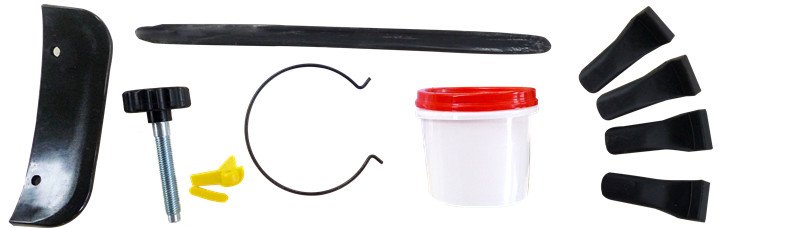

Standard Parts:

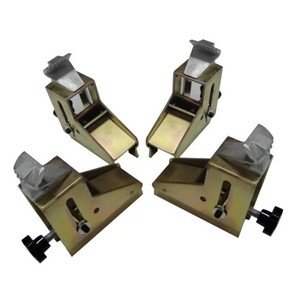

Optional Parts:

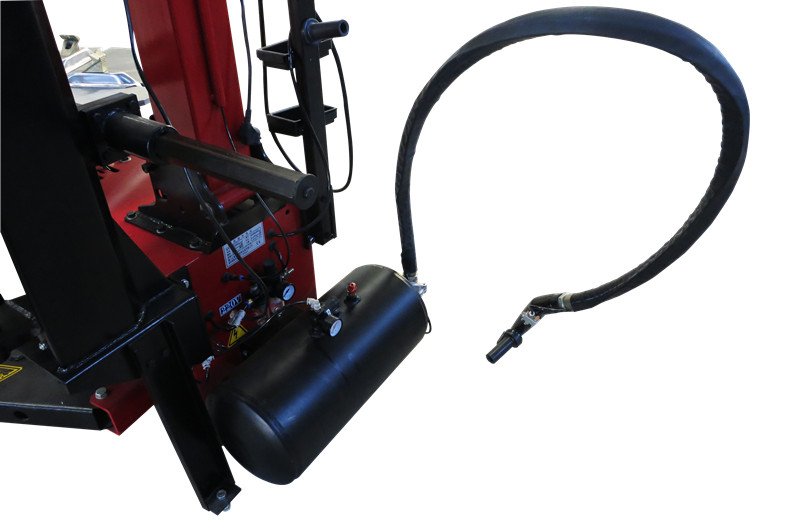

Integreted Bead Blaster


Motorcycle Adaptor


________________________________________________________________________________________________________________

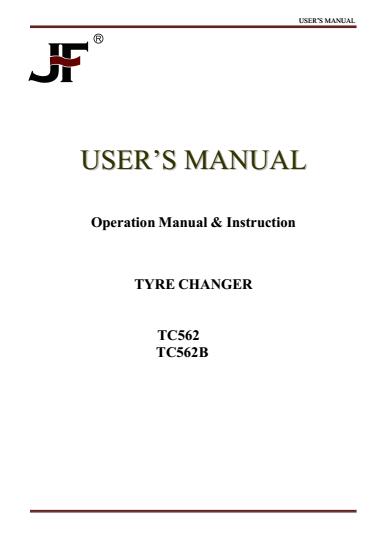

Manual


Click the image above to download manual book for TC562B

________________________________________________________________________________________________________________


Catalogue


Click here to download catalogue

Ask our sales representitives for download password please. Thank you.
