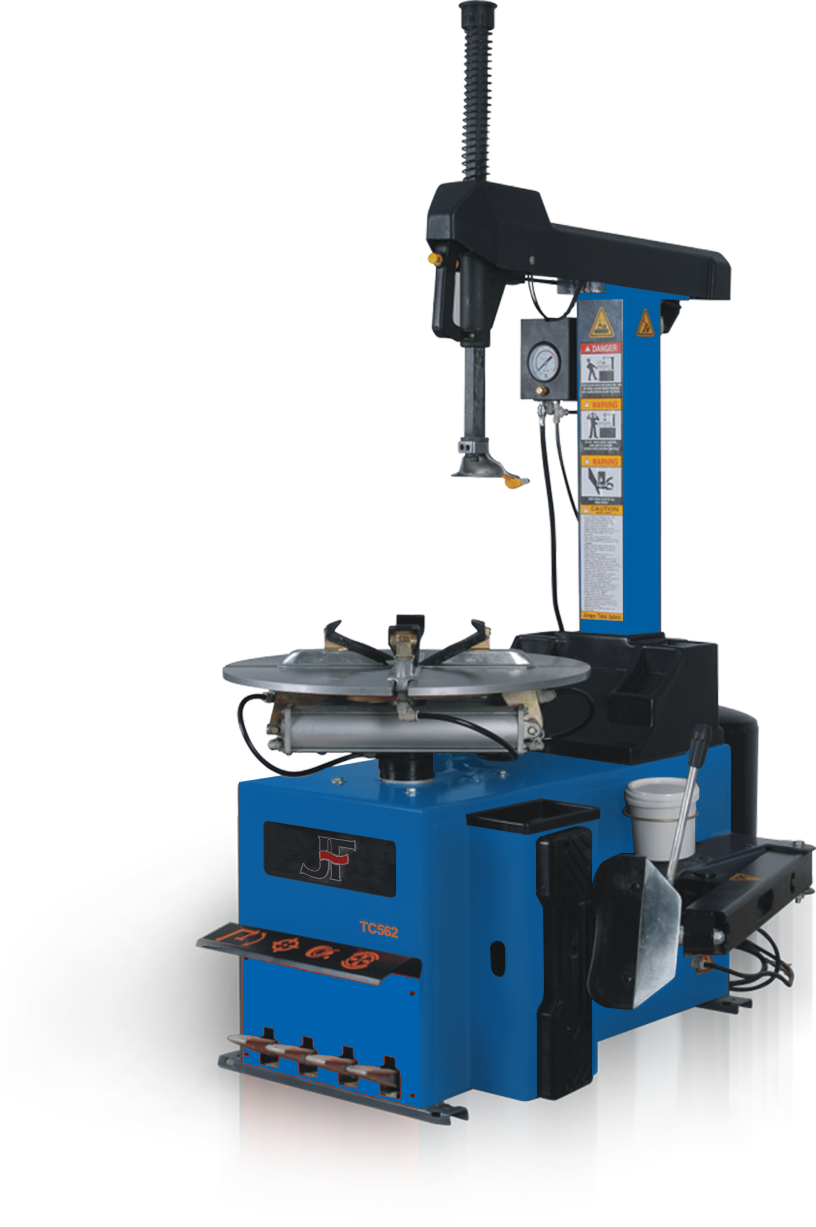

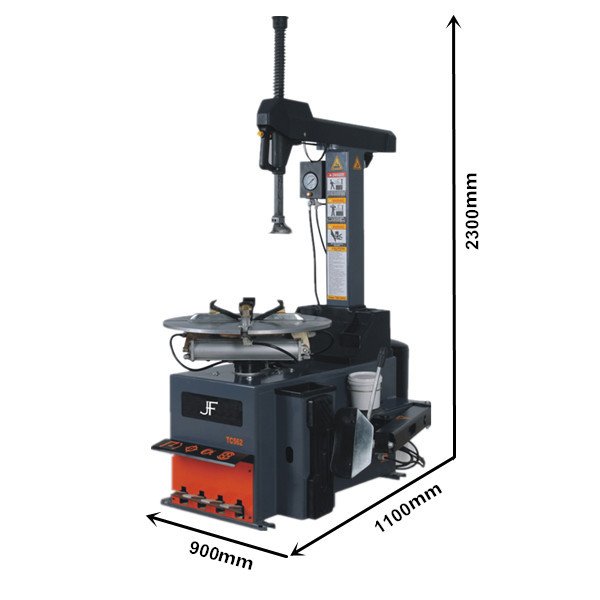

TC562 PNEUMATIC SEMI-AUTO
Model No.: TC562
Automatic model Range: 10"-24"
TC562
Suitable for mountaing/demounting larger and wider tires
High-performance on alloy wheels mountaing/demounting
Clamping jaws and mounting/demounting head are made of high-quality steel
Automatic push button up-down shift arm on the colum
Equipped with tilting colum
Equipped with inflation gauge
Equipped with bead breaker system extremelly versatile
Equipped with adjustable internal/external wheel clamps
Large turnable with high-quality cylinders and sealing parts
Equipped with power assist bead roller
Equipped with bead lifting disk
Equipped with bead hold-down device
Features:
________________________________________________________________________________________________________________

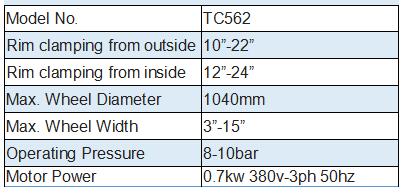

Specifications
Specifications
| Description | TC562 |
| Rim clamping from outside | 10”-22” |
| Rim clamping from inside | 12”-24” |
| Max. Wheel Diameter | 1040mm |
| Max. Wheel Width | 3”-15” |
| Operating Pressure | 8-10bar |
| Motor Power | 0.7kw 380v-3ph 50hz |
| Packing Size | 1150”900”930mm=(0.91m3) |
| Net Weight | 314kg |
| Gross Weight | 364kg |
| Quantity in container | 20’/10 40’/22 |
________________________________________________________________________________________________________________

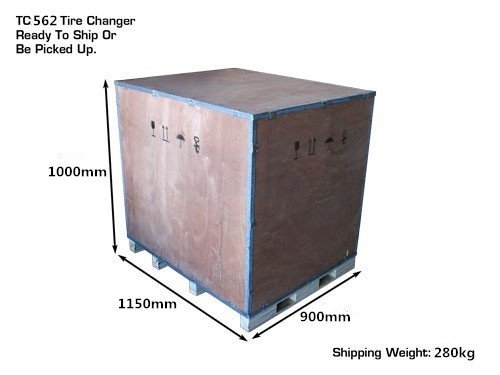

Pakcage Size:
Pakcage Size:
________________________________________________________________________________________________________________
Standard Parts:
Optional Parts:
Integreted Bead Blaster
Standard Parts:
Optional Parts:
Integreted Bead Blaster
________________________________________________________________________________________________________________
Standard Parts
Click the image above to download manual book for TC562
Standard Parts
Click the image above to download manual book for TC562
________________________________________________________________________________________________________________
Catalogue
Catalogue
Click here to download catalogue
Ask our sales representitives for download password please. Thank you.
