L-S-7 3T ELECTRO-HYDRAULIC
Model No.: L-S-7
3 Ton Mid Height Super Thin

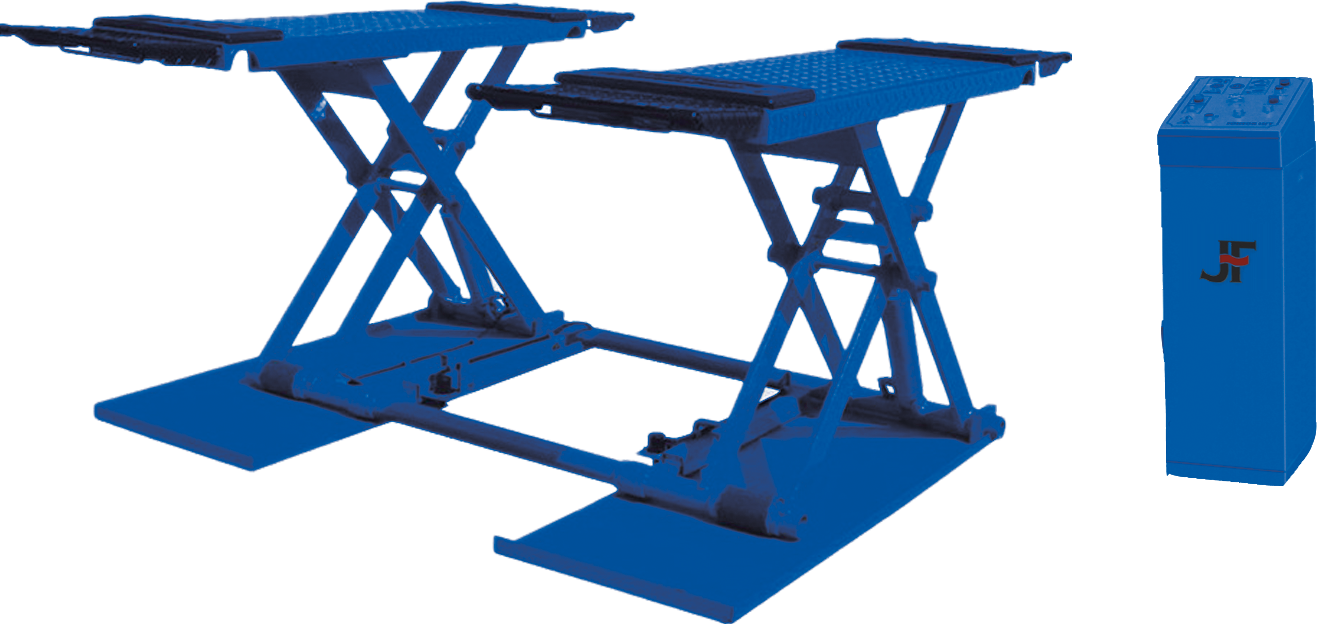

Mid-Rise Scissor Lift L-S-7 3Ton/7000lb
· 3000 KG(7,000 LB). Capacity
· 1000mm(39 2/5”) max lifting height
· No above ground obstruction
· Air actuated locks
· Movable kit optional
· Separate Self-Contained Control Panel
· 3000 KG(7,000 LB). Capacity
· 1000mm(39 2/5”) max lifting height
· No above ground obstruction
· Air actuated locks
· Movable kit optional
· Separate Self-Contained Control Panel
________________________________________________________________________________________________________________

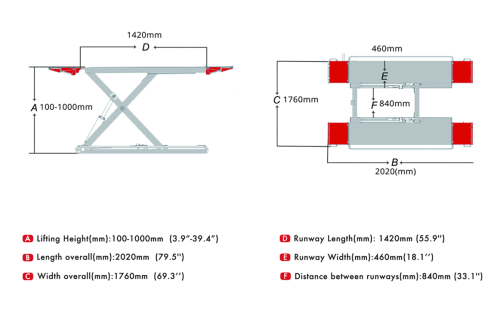

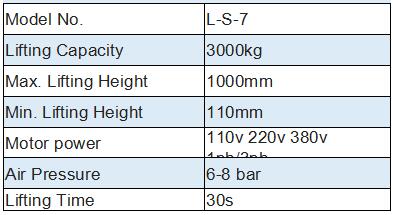

Specifications
Specifications
| Name | L-S-7 | |
| Lifting Capacity | 3000kg(7000lb) | |
| Lifting Height | A | 100-1000mm(3.9"-39.4") |
| Length Overall | B | 2020mm(79.5") |
| Width Overall | C | 1760mm(69.3") |
| Runway Length(mm) | D | 1420mm(55.9") |
| Runway Width(mm) | E | 460mm(18.1") |
| Distance between runways(mm) | F | 840mm(33.1") |
| Lifting Time | 50s | |
| Air Pressure | 6-8 bar | |
________________________________________________________________________________________________________________
Manual
Click the image above to download manual book for L-S-3
Ask our sales representitives for download password please. Thank you.
Manual
Click the image above to download manual book for L-S-3
Ask our sales representitives for download password please. Thank you.
________________________________________________________________________________________________________________
Catalogue
Catalogue
Click here to download catalogue
Ask our sales representitives for download password please. Thank you.
