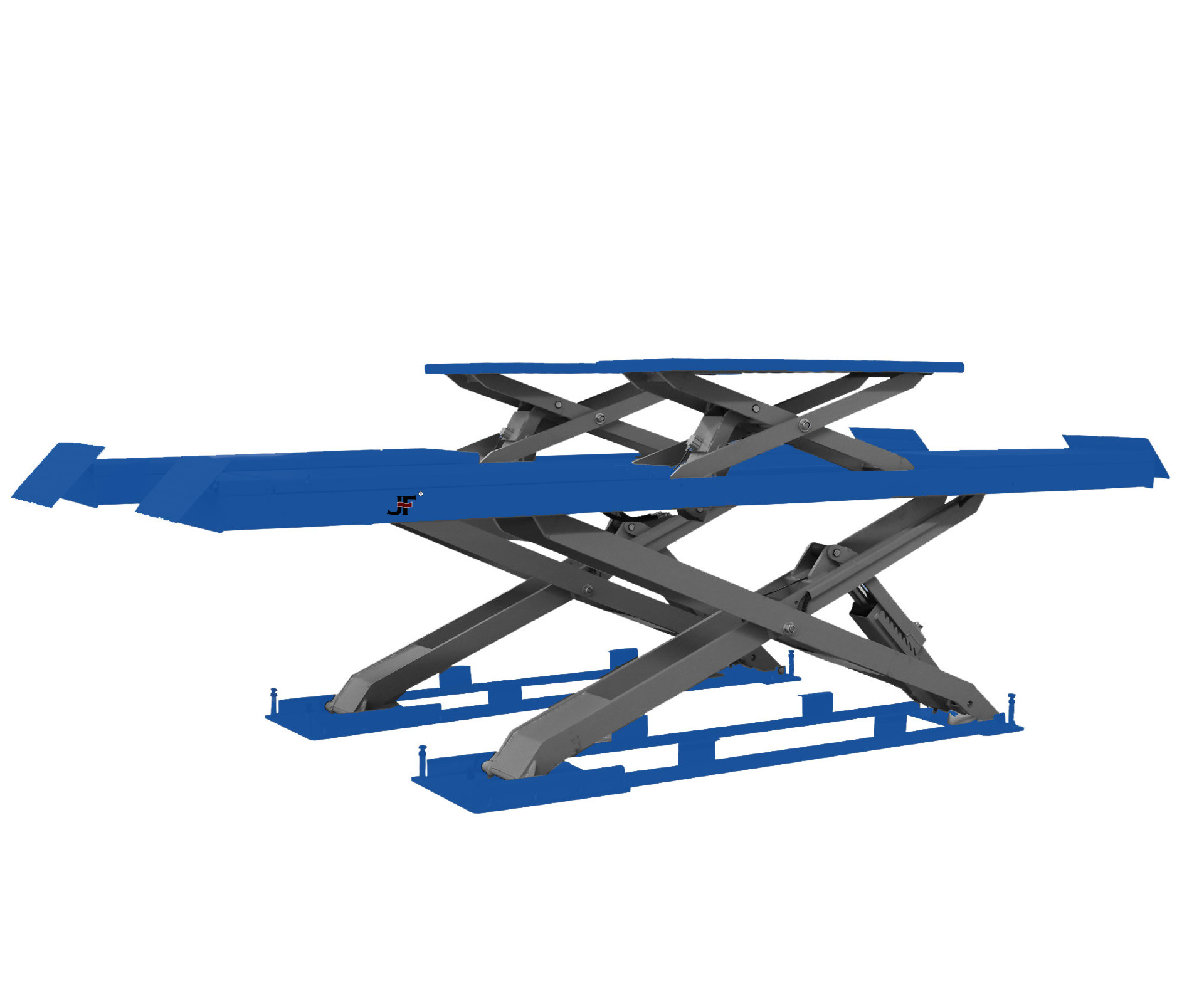

L-S-8 4T ELECTRO-HYDRAULIC
Model No.: L-S-8C
Alignment
L-S-8 4Ton/9000lb
· 4000 KG(9,000 LB). Capacity
· 2000mm(78 4/5”) max lifting height
· Large Platform
· surfaced mounted or flush mounted

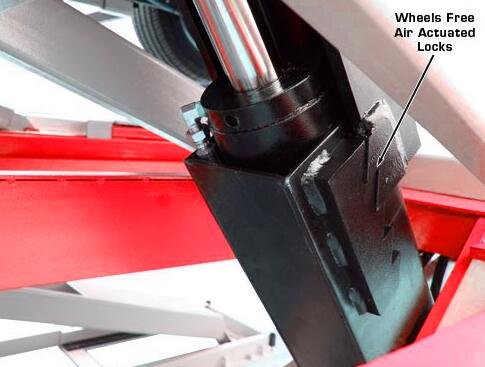

· Air actuated locks
· Zerk grease fittings at each hinge point
· Separate Self-Contained Control Panel
· 4000 KG(9,000 LB). Capacity
· 2000mm(78 4/5”) max lifting height
· Large Platform
· surfaced mounted or flush mounted
· Air actuated locks
· Zerk grease fittings at each hinge point
· Separate Self-Contained Control Panel
________________________________________________________________________________________________________________

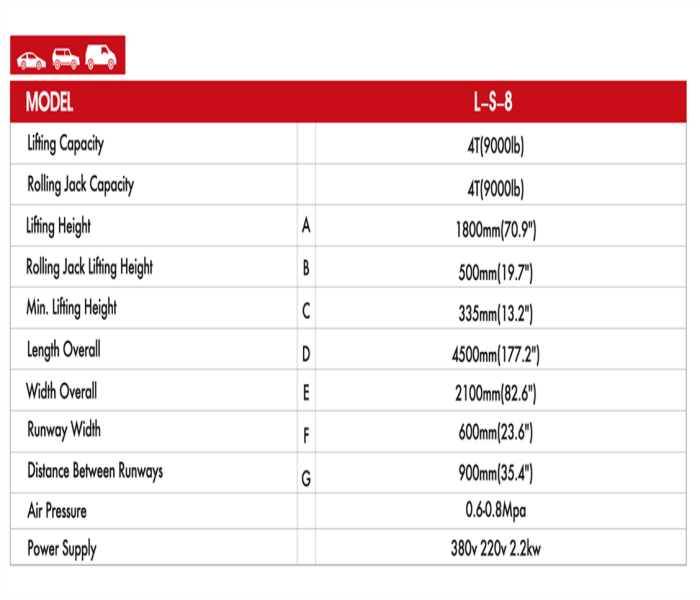

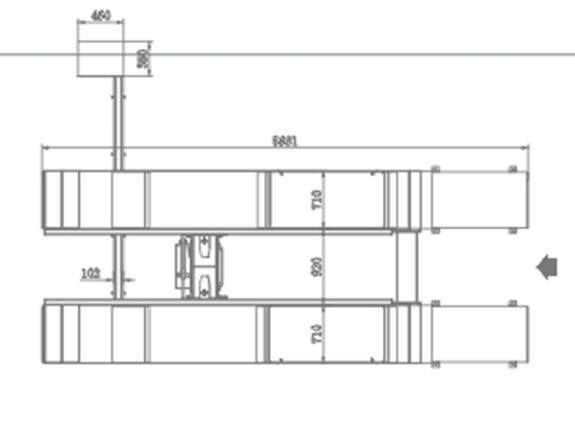

Specifications
Specifications
| Name | L-S-8 | |
| Lifting Capacity | 4000kg(9000lb) | |
| Rolling Jack Capacity | 4000kg(9000lb) | |

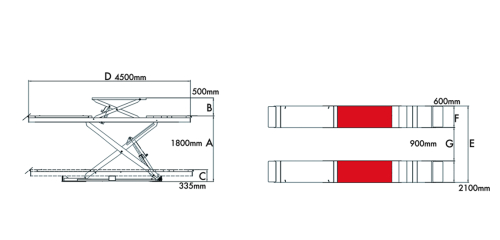

| Lifting Height | A | 1800mm(70.9") |
| Rolling Jack Lifting Height | B | 500mm(19.7") |
| Min. Lifting Height | C | 335mm(13.2") |
| Length Overall | D | 4500mm(177.2") |
| Width Overall | E | 2100mm(82.6") |
| Runway Width(mm) | F | 600mm(23.6") |
| Distance between runways(mm) | G | 900mm(35.4”) |
| Air Pressure | 0.6-0.8Mpa | |
| Power Supply | 380v 220v 2.2kw | |
________________________________________________________________________________________________________________
Optional Parts

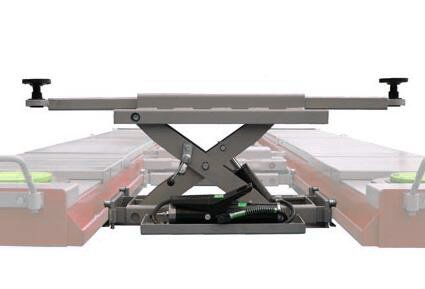

Rolling Jack
Optional Parts
Rolling Jack
________________________________________________________________________________________________________________
Manual
Manual
________________________________________________________________________________________________________________
Catalogue
Catalogue
Click here to download catalogue
Ask our sales representitives for download password please. Thank you.
