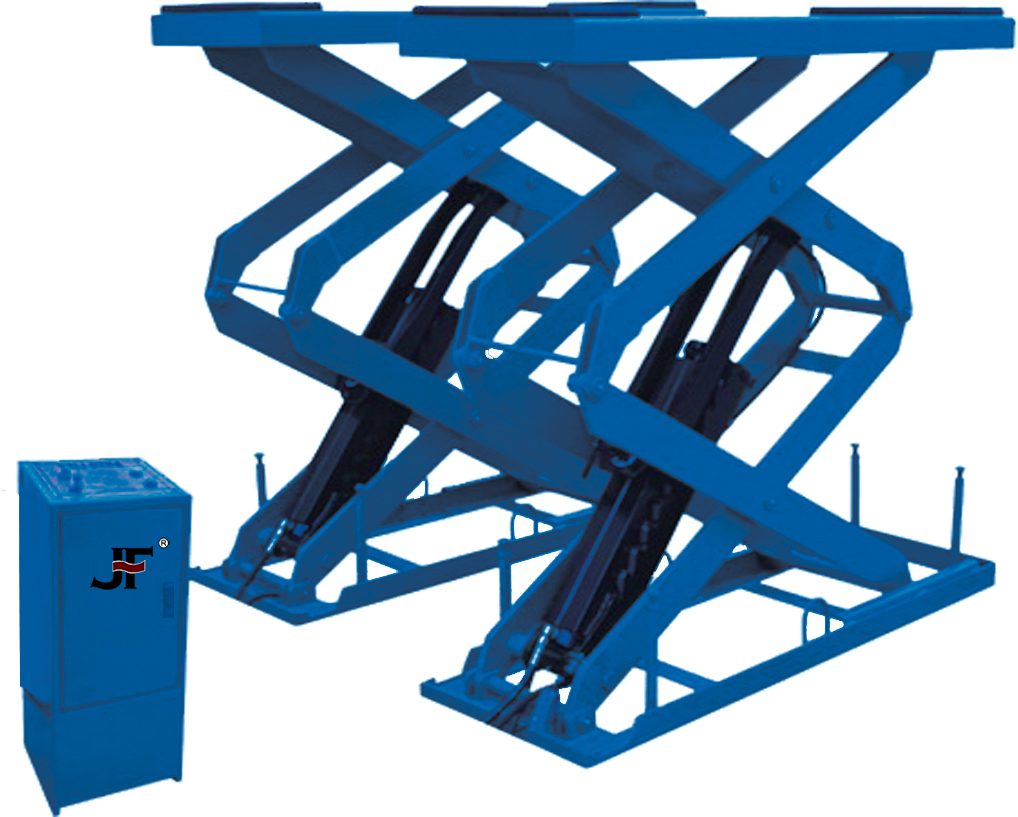

L-S-5 3T ELECTRO-HYDRAULIC
Model No.: L-S-5
3 Ton In-Ground
L-S-5 3Ton/7000lb
· 3000 KG(7,000 LB). Capacity

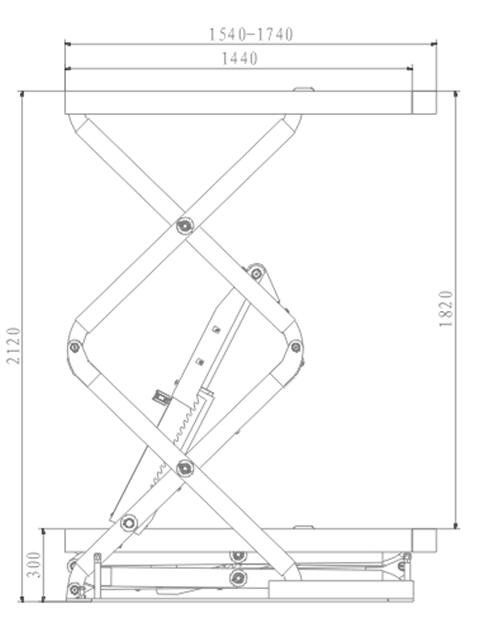

· 1820mm(71-3/5”) max lifting height
· Adjustable width
· Open middle for easy access
· Locking approach ramps

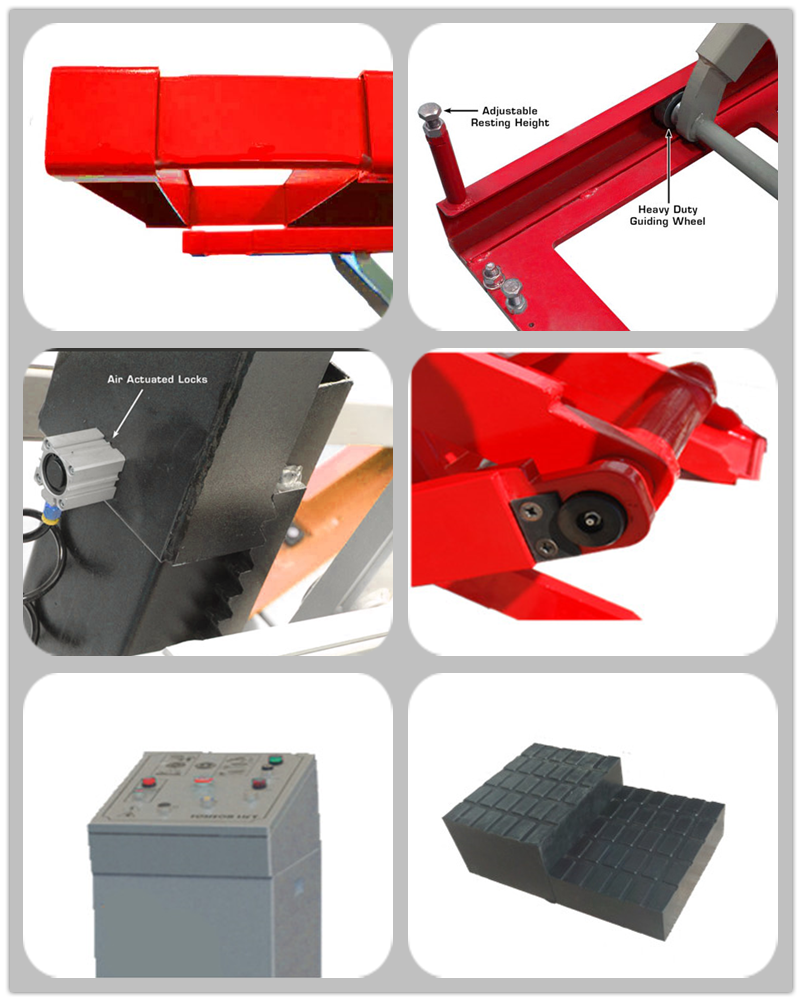

· Air actuated locks
· Zerk grease fittings at each hinge point
· Separate Self-Contained Control Panel
________________________________________________________________________________________________________________

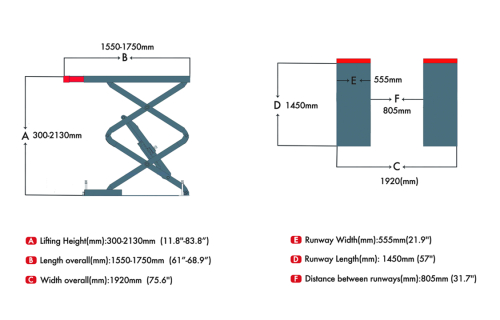

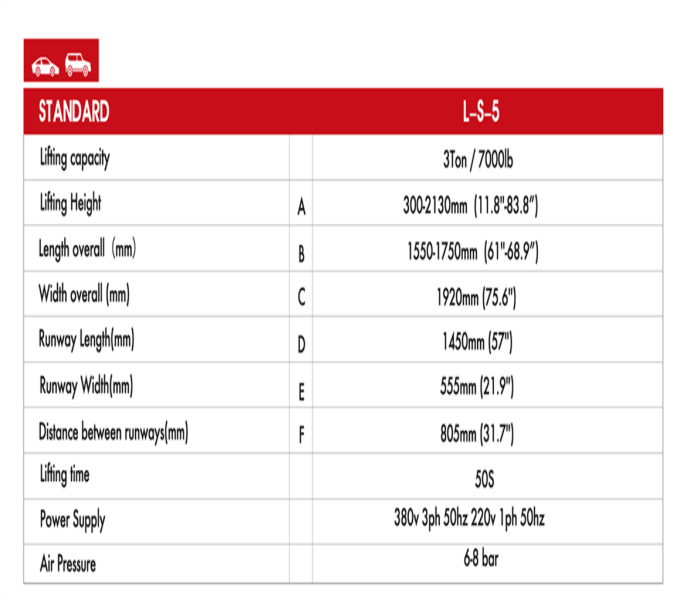

Specifications
Specifications
| Name | L-S-5 | |
| Lifting Capacity | 3000kg(7000lb) | |
| Lifting Height | A | 300-2130mm(11.8-83.8") |
| Length Overall | B | 1550-1750mm(61"-68.9") |
| Width Overall | C | 1920mm(75.6") |
| Runway Length(mm) | D | 1450mm(57") |

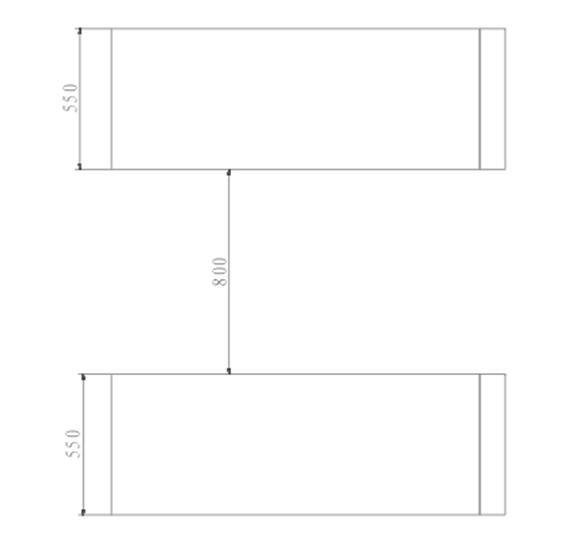

| Runway Width(mm) | E | 555mm(21.9") |
| Distance between runways(mm) | F | 805mm(31.7”) |
| Lifting Time | 50s | |
| Air Pressure | 6-8 bar | |
________________________________________________________________________________________________________________
Optional Parts

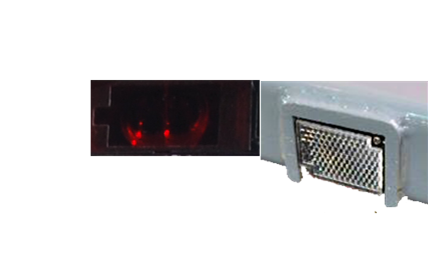

Photo-cell Sensor Kit
Optional Parts
Photo-cell Sensor Kit
________________________________________________________________________________________________________________

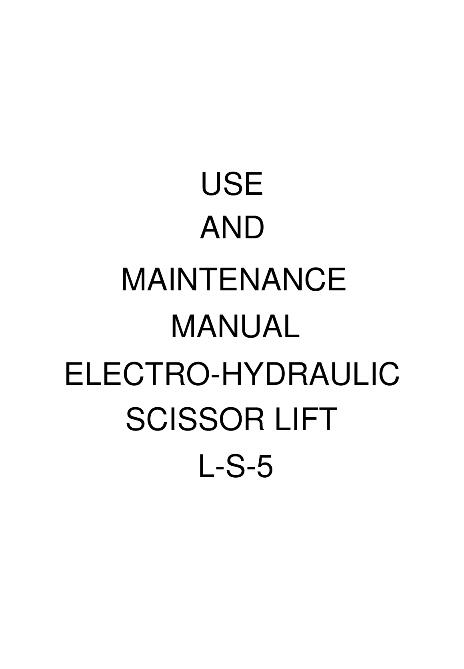

Manual
Click the image above to download manual book for L-S-5
Ask our sales representitives for download password please. Thank you.
________________________________________________________________________________________________________________
Catalogue
Click here to download catalogue
Ask our sales representitives for download password please. Thank you.
Catalogue
Click here to download catalogue
Ask our sales representitives for download password please. Thank you.
