Scissor Lifts L-S-6 3.5Ton/8000lb
·  3500 KG(8,000 LB). Capacity
·  1850mm(72 4/5”) max lifting height
·  Adjustable width
·  Open middle for easy access
·  Locking approach ramps
·  Air actuated locks
·  Zerk grease fittings at each hinge point
·  Separate Self-Contained Control Panel

________________________________________________________________________________________________________________

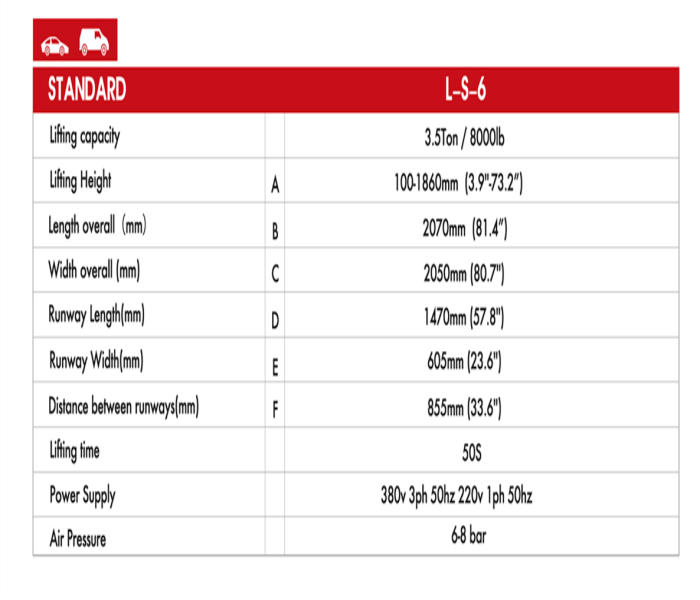

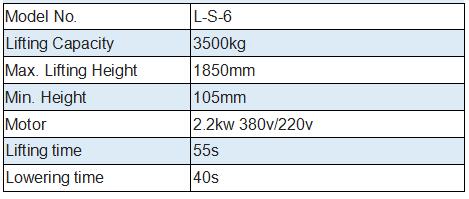

Specifications

Name	L-S-6
Lifting Capacity		3500kg(8000lb)

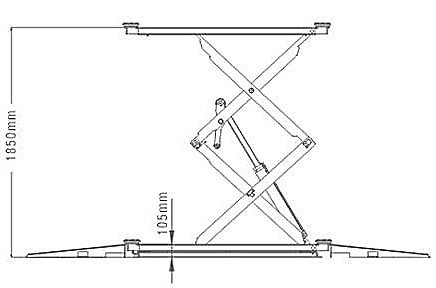

Lifting Height	A	100-1860mm(3.9"-73.2)

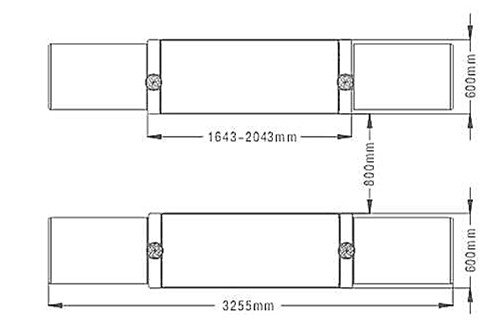

Length Overall	B	2070mm(81.4")
Width Overall	C	2050mm(80.7")
Runway Length(mm)	D	1470mm(57.8")
Runway Width(mm)	E	605mm(23.6")
Distance between runways(mm)	F	855mm(33.6")
Lifting Time		50s
Air Pressure		6-8 bar

________________________________________________________________________________________________________________


Optional Parts

Photo-Cell Sensor Kit
