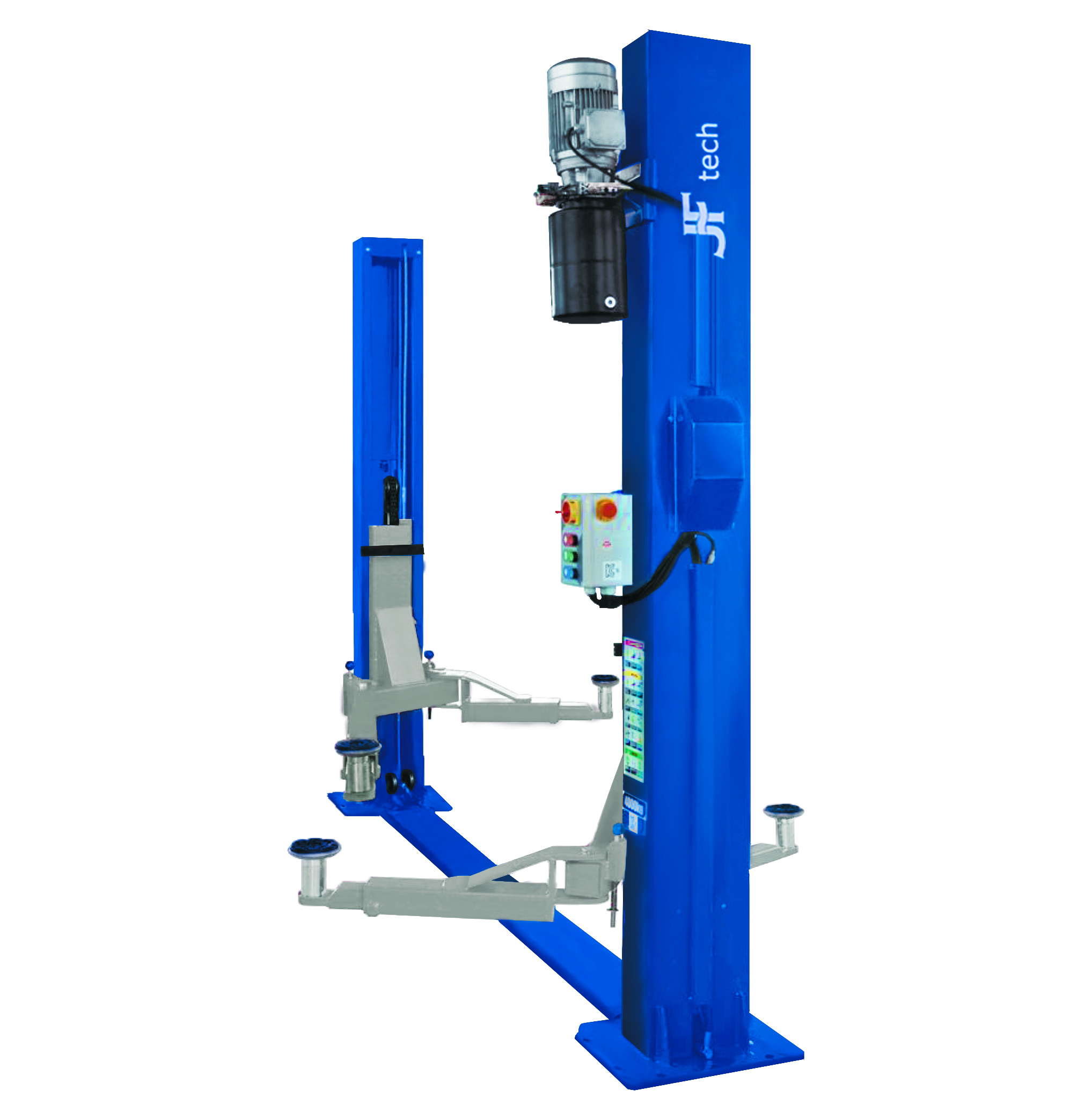

L-2-40E 4T ELECTRIC
Model No.: L-2-40E
Chain Drive Electric Lock
L-2-40E 4Ton/9000lb
4000KG lifting capacity.
2000mm lifting height with standard truck adapter.
Electric lock release, just press Up and Down button to operate the lift.
Passed dynamic test: 115% of the rated capacity & static test: 150% of the rated capacity.
Only 40 seconds raising time with optional quick motor to shorten your service time.
Baseless design for easy movement of maintenance equipment under the raised vehicle.
The rubber protected overhead bar switches off the power system when vehicle roof touches it.
CE certificated by UK.
You need a powerful car lift!
4000KG lifting capacity.
2000mm lifting height with standard truck adapter.
Electric lock release, just press Up and Down button to operate the lift.
Passed dynamic test: 115% of the rated capacity & static test: 150% of the rated capacity.
Only 40 seconds raising time with optional quick motor to shorten your service time.
Baseless design for easy movement of maintenance equipment under the raised vehicle.
The rubber protected overhead bar switches off the power system when vehicle roof touches it.
CE certificated by UK.
You need a powerful car lift!
________________________________________________________________________________________________________________

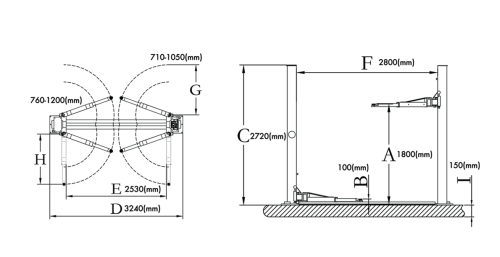

Specifications
Specifications
| Name | L-2-40E | |
| Lock/Release System | Electric | |
| Lifting Capacity | 4000kg(9000lb) | |
| Lifting Height drop-in pad | A | 1800mm(70.9") |
| Pad Min.height drop-in pad | B | 100mm(3.9") |
| Height Overall | C | 2720mm(107") |
| Width Overall | D | 3240mm(127.5") |
| Drive Through | E | 2530mm(100") |
| Width Between Columns | F | 2800mm(110") |
| Arm Reach Front | G | 710-1050mm(27.9”-41.3") |
| Arm Reach Rear | H | 760-1200mm(29.9”-47.2") |
| Concrete Thickness | I | 150mm(5.9") |
| Lifting Time | 50s | |
| Motor Power | 2.2kw(3HP) |
________________________________________________________________________________________________________________
Package Size(MM)
20' Container Load Solution(24 sets)
40' Container Load Soltuion(43 sets)
Package Size(MM)
a. Steel Stack(Lift main structure)

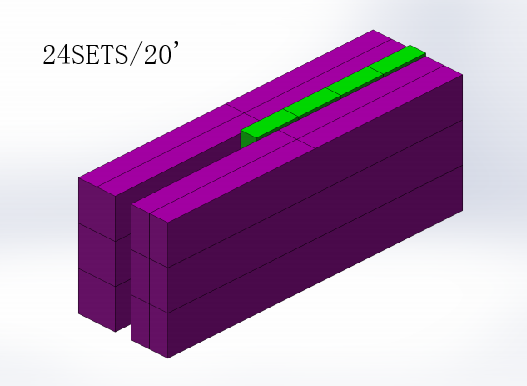

20' Container Load Solution(24 sets)

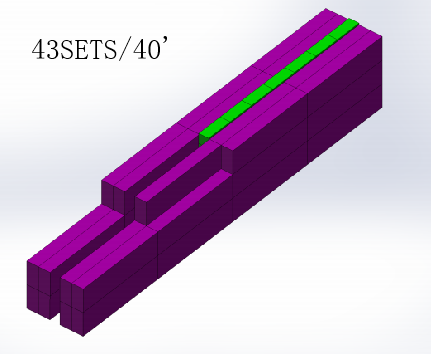

40' Container Load Soltuion(43 sets)
________________________________________________________________________________________________________________

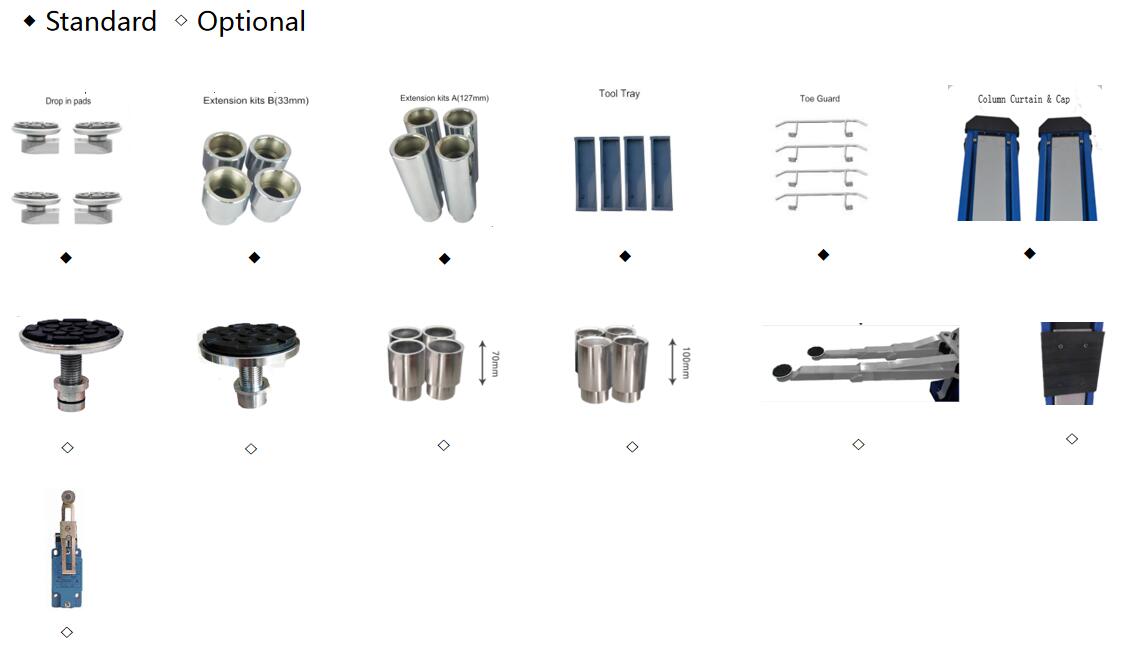

PARTS
