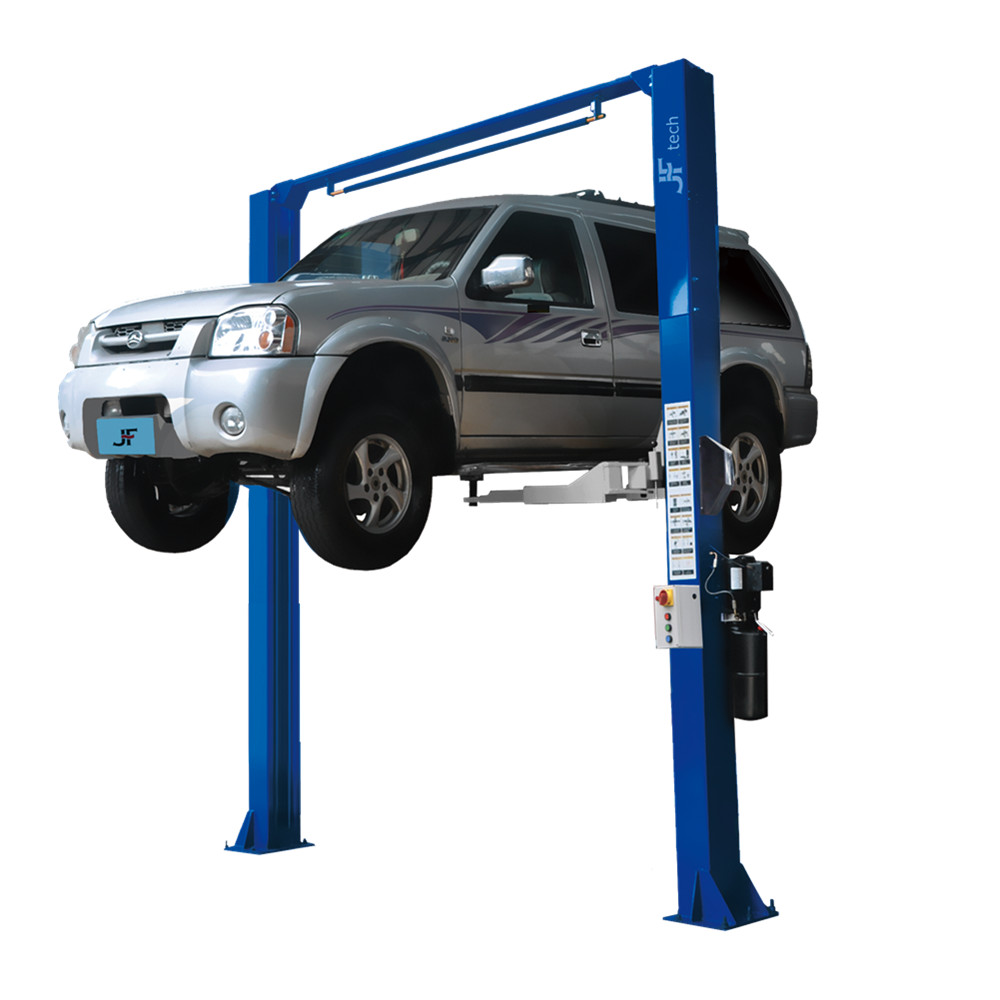

L-2C-40E 4T ELECTRIC
Model No.: L-2C-40E
Clear Floor Electric Lock
L-2C-40E 4000kg/9000lb lifting capacity.
2000mm lifting height with standard truck adapter.
Electric lock release, convenient to release the column.
Passed dynamic test: 115% of the rated capacity & static test: 150% of the rated capacity.
Only 40 seconds raising time with optional quick motor to shorten your service time.
Baseless design for easy movement of maintenance equipment under the raised vehicle.
The rubber protected overhead bar switches off the power system when vehicle roof touches it.
CE certificated by UK.
2000mm lifting height with standard truck adapter.
Electric lock release, convenient to release the column.
Passed dynamic test: 115% of the rated capacity & static test: 150% of the rated capacity.
Only 40 seconds raising time with optional quick motor to shorten your service time.
Baseless design for easy movement of maintenance equipment under the raised vehicle.
The rubber protected overhead bar switches off the power system when vehicle roof touches it.
CE certificated by UK.
________________________________________________________________________________________________________________

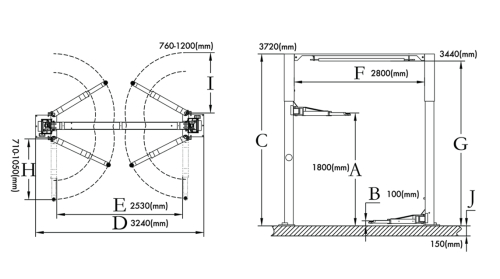

Specifications
Specifications
| Name | L-2C-40E | |
| Lifting Method | Chain Drive | |
| Lock/Release System | Electric | |
| Lifting Capacity | 4000kg(9000lb) | |
| Lifting Height drop-in pad | A | 1800mm(70.9") |
| Pad Min.height drop-in pad | B | 100mm(3.9") |
| Height Overall | C | 3720mm(146.5") |
| Width Overall | D | 3240mm(127.5") |
| Drive Through | E | 2530mm(100") |
| Width Between Columns | F | 2800mm(110") |
| Limit switch height | G | 3440mm(135.4”) |
| Arm Reach Front | H | 710-1050mm(27.9”-41.3") |
| Arm Reach Rear | I | 760-1200mm(29.9”-47.2") |
| Concrete Thickness | J | 150mm(5.9") |
| Lifting Time | 50s | |
| Motor Power | 2.2kw(3HP) | |

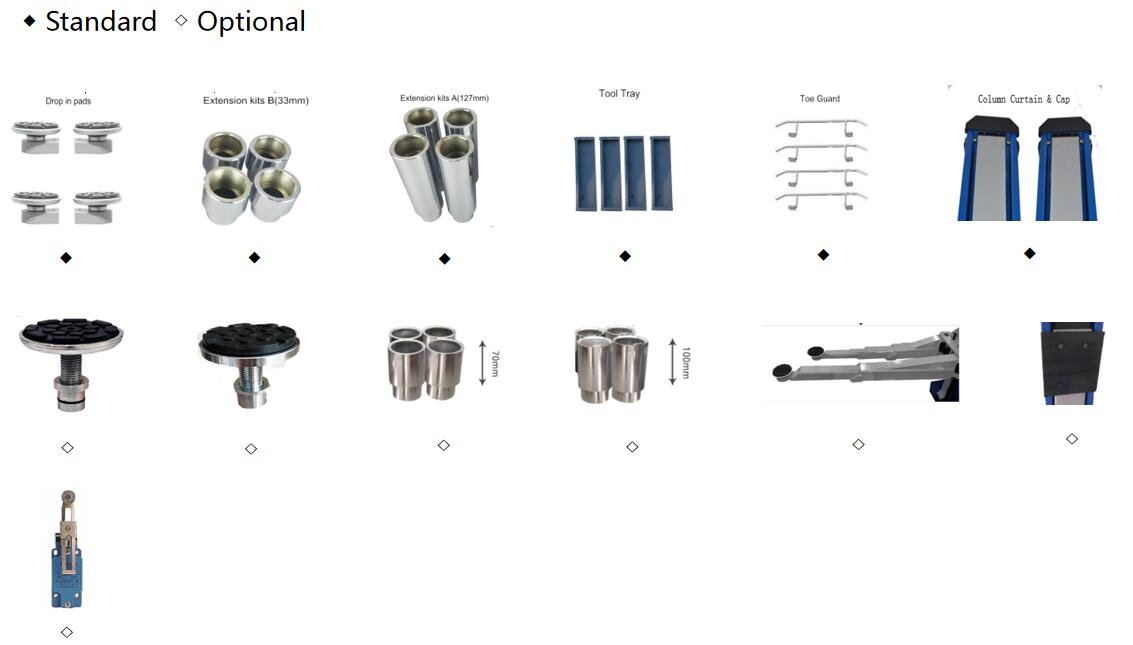

PARTS
