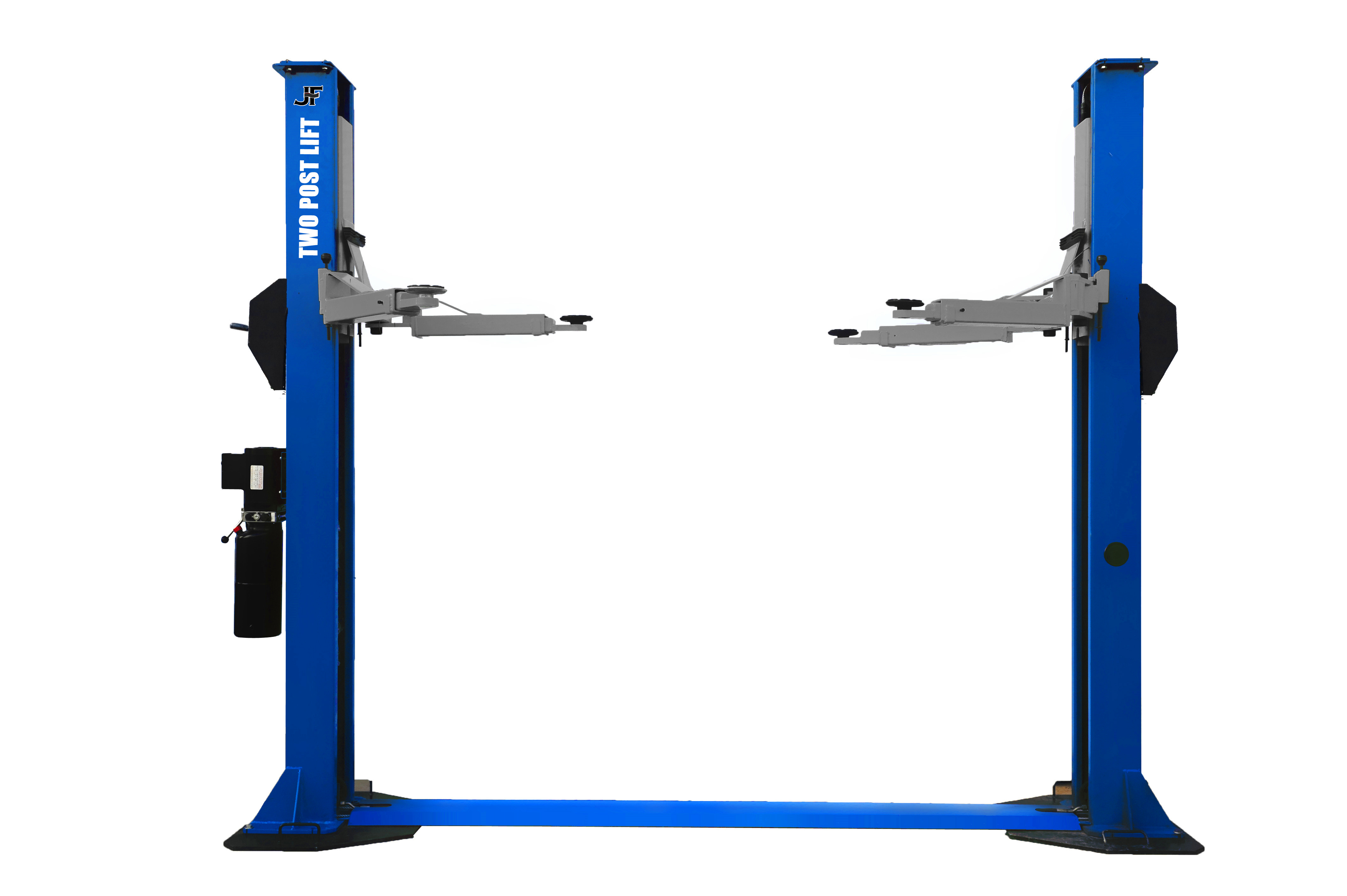

L-2-40S 4T SINGLE POINT

Model No.: L-2-40S

Chain Drive Single Lock

Related Products

  • Features
  • Technical Data
  • Dimension
  • Optional Parts
  • Manual Download
  • Catalogue
  • Video
L-2-40S 4Ton/9000lb
4000KG lifting capacity.

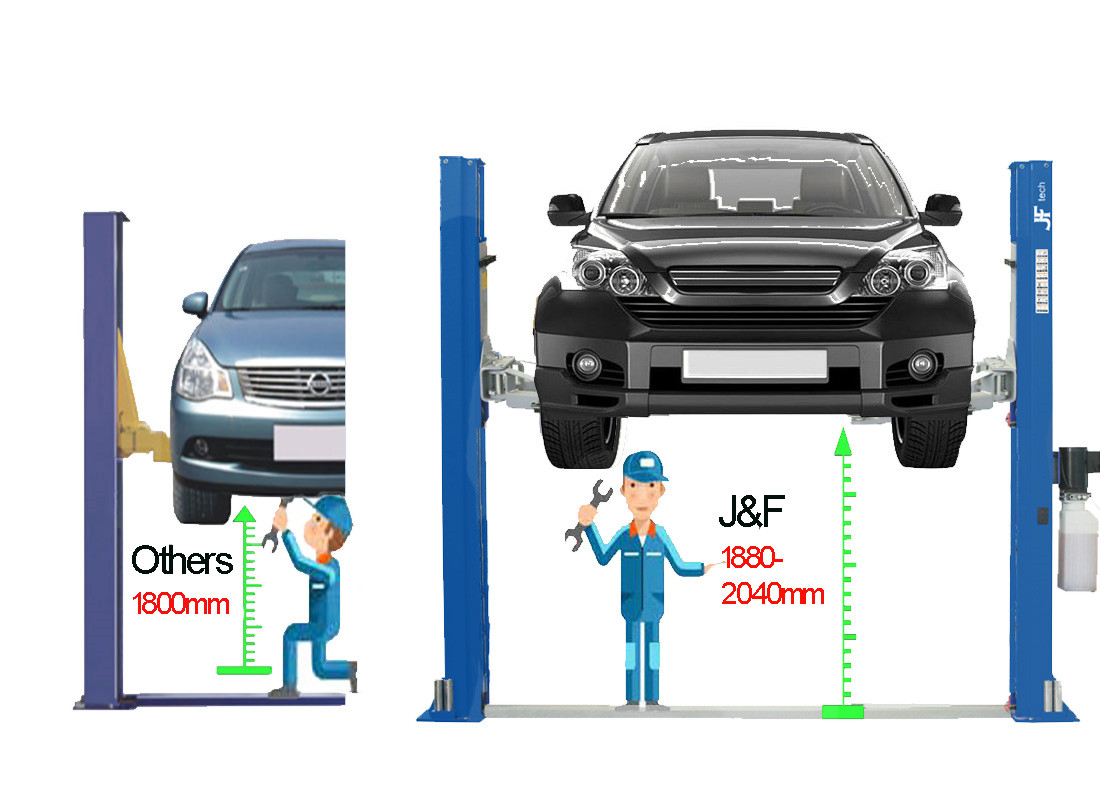

2000mm lifting height with standard truck adapter.
Single lock release, convenient to release the column.

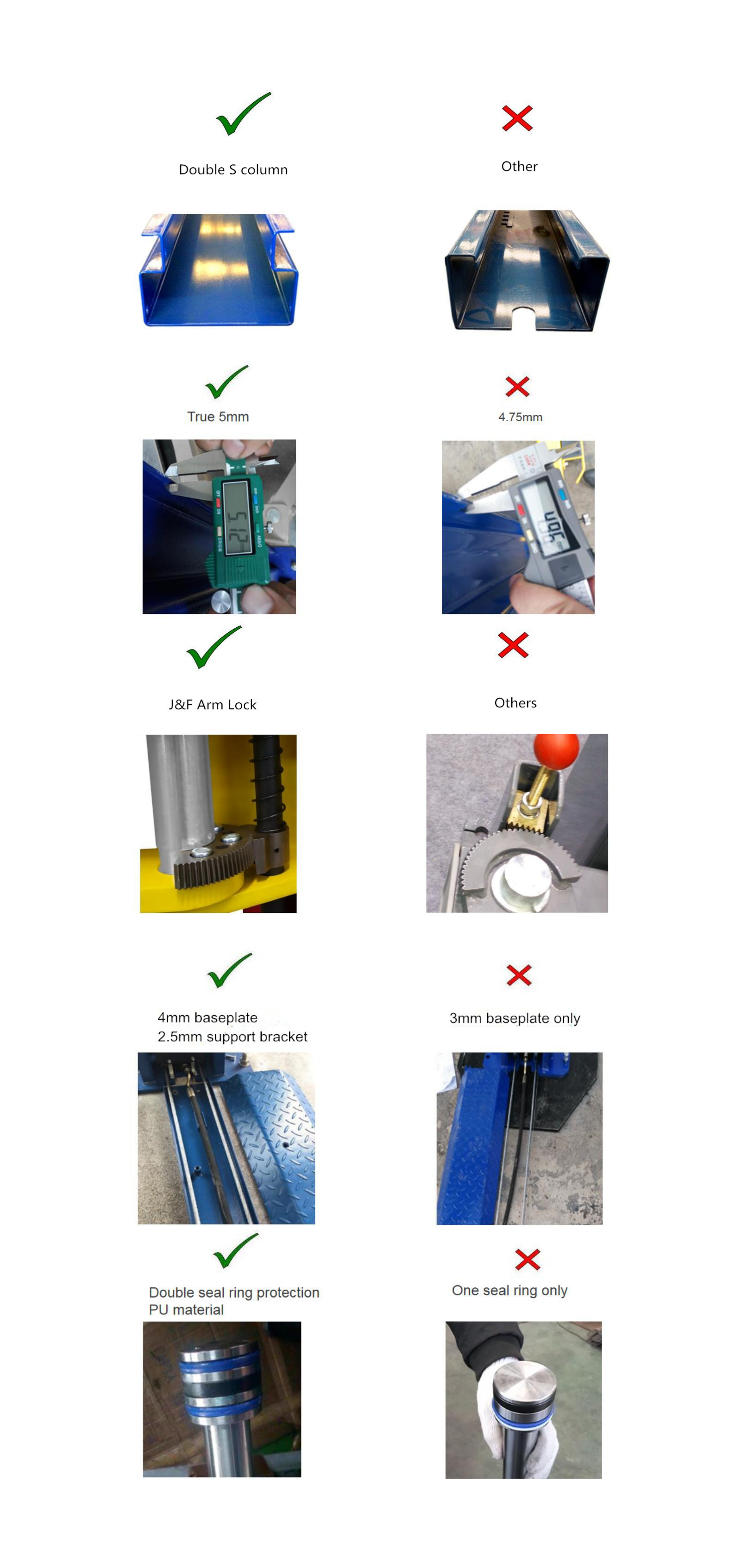

Double S shape column (8 times dending), it bears more strength than old design 6 times bending.
Passed dynamic test: 115% of the rated capacity & static test: 150% of the rated capacity.
Only 40 seconds raising time with optional quick motor to shorten your service time.
Baseless design for easy movement of maintenance equipment under the raised vehicle.
The rubber protected overhead bar switches off the power system when vehicle roof touches it.
CE certificated by UK.

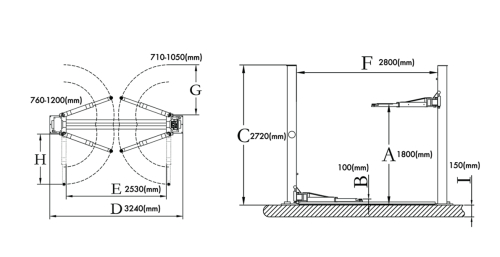

Name   L-2-40S
Lock/Release System   Single Point
Lifting Capacity   4000kg(9000lb)
Lifting Height drop-in pad A 1800mm(70.9")

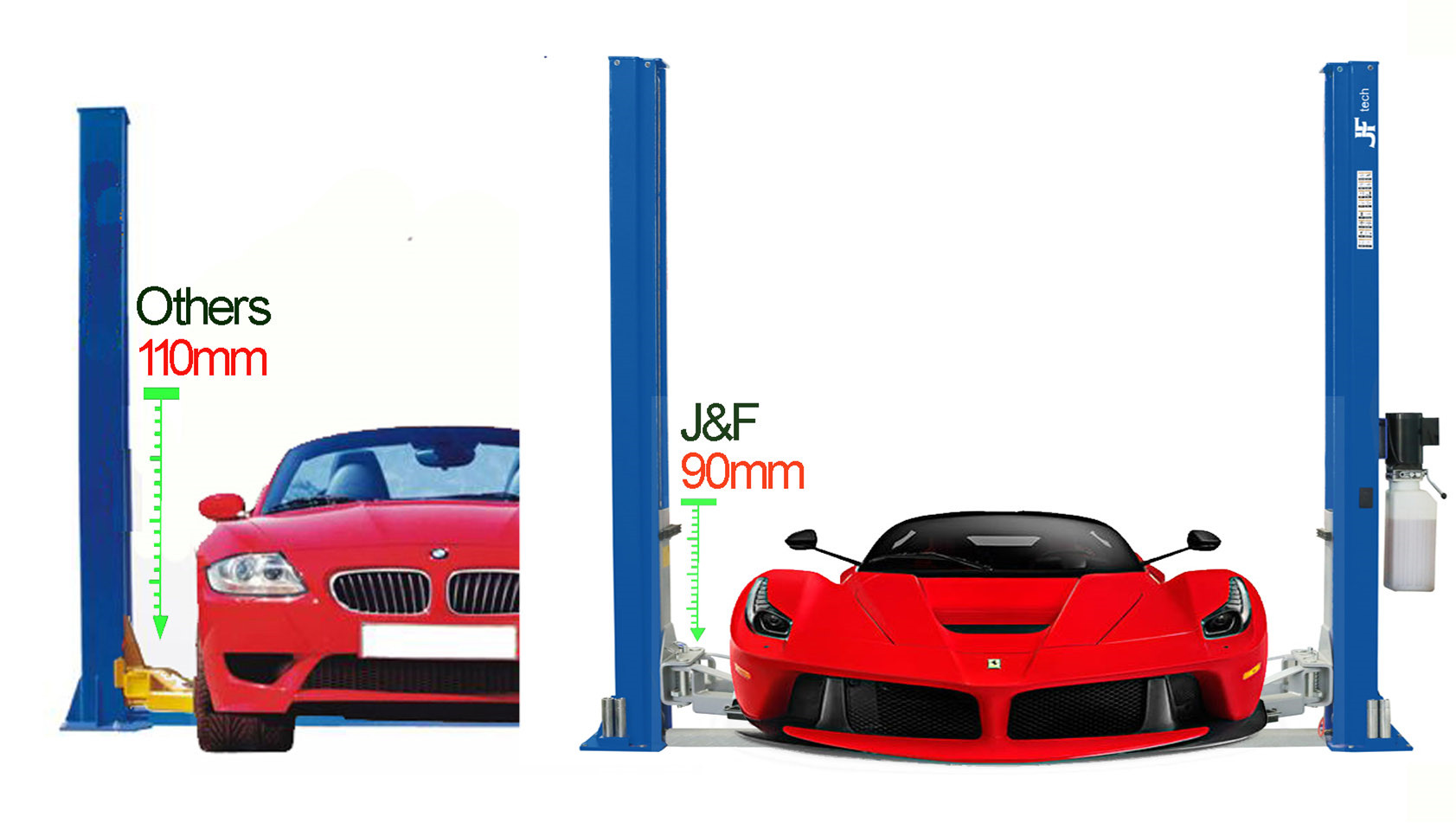

Pad Min.height drop-in pad B 100mm(3.9")
Height Overall C 2720mm(107")
Width Overall D 3240mm(127.5")
Drive Through E 2530mm(100")
Width Between Columns F 2800mm(110")
Arm Reach Front G 710-1050mm(27.9”-41.3")
Arm Reach Rear H 760-1200mm(29.9”-47.2")
Concrete Thickness I 150mm(5.9")
Lifting Time   50s
Motor Power   2.2kw(3HP)

Package Size(MM)

   a. Steel Stack(Lift main structure)




   b. Carton(Power Unit)

Standard Config.





Optioins
