L-2-40D 4T DOUBLE POINT
Model No.: L-2-40D
Chain Drive Double Lock

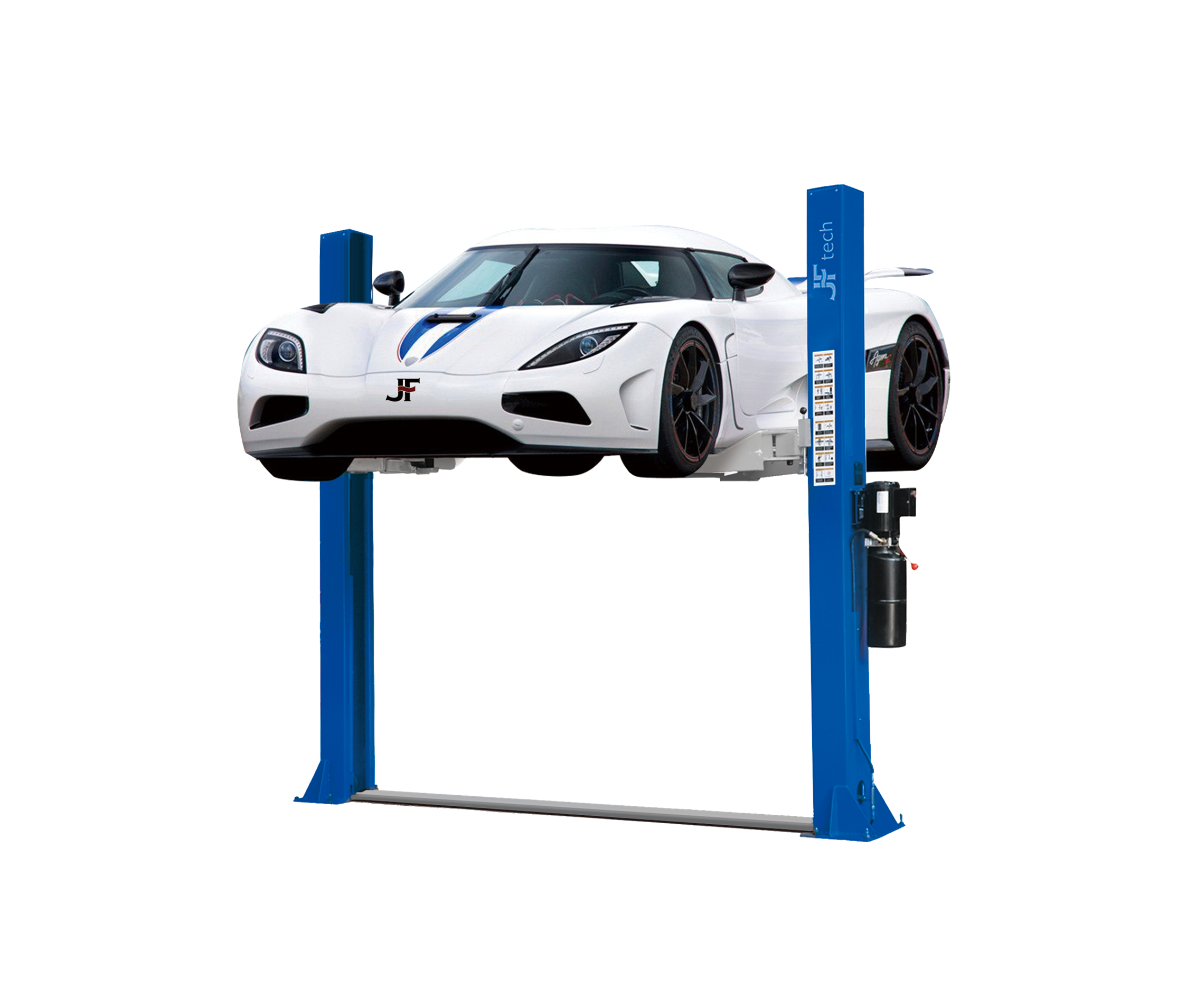

2 POST CAR LIFT L-2-40D 4T
FEATURES
4000KG lifting capacity.
FEATURES
4000KG lifting capacity.
2000mm lifting height with standard truck adapter.
Double lock release, convenient to release the column.
Passed dynamic test: 115% of the rated capacity & static test: 150% of the rated capacity.
Only 40 seconds raising time withoptional quick motor to shorten your service time.
Baseless design for easy movement of maintenance equipment under the raised vehicle.
The rubber protected overhead bar switches off the power system when vehicle roof touches it.
CE certificated by UK.
You need a powerful car lift!
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
SPECIFICATIONS
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

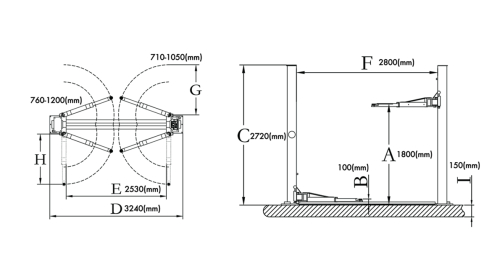

| Name | L-2-40D | |
| Lock/Release System | Double Point | |
| Lifting Capacity | 4000kg(9000lb) | |
| Lifting Height drop-in pad | A | 1800mm(70.9") |
| Pad Min.height drop-in pad | B | 100mm(3.9") |
| Height Overall | C | 2720mm(107") |
| Width Overall | D | 3240mm(127.5") |
| Drive Through | E | 2530mm(100") |
| Width Between Columns | F | 2800mm(110") |
| Arm Reach Front | G | 710-1050mm(27.9”-41.3") |
| Arm Reach Rear | H | 760-1200mm(29.9”-47.2") |
| Concrete Thickness | I | 150mm(5.9") |
| Lifting Time | 50s | |
| Motor Power | 2.2kw(3HP) |
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
PARTS
PACKAGE
20' Container Load Solution(30 sets)
40' Container Load Soltuion(48 sets)
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
20' Container Load Solution(30 sets)
40' Container Load Soltuion(48 sets)
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
MANUAL
Click here to download manual book for L-2-40D
Ask our sales representitives for download password please. Thank you.
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
CATALOGUE
Click here to download catalogue
Ask our sales representitives for download password please. Thank you.
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
VIDEO
Our car lifts are tested by CE standard(1.15 times dynamtic loading / 1.5 time static loading)
