L-2C-45SX 4.5T SINGLE POINT
Model No.:
Direc Drive Signle Lock Release
2 POST CAR LIFT L-2C-45SX 4.5T/10000LB
· 4500kg Capacity
· Double “S” Column Design
· Symmetric/Asymmetric Installation
· Symmetric Arms
· Clear Floor Type
· Dual Hydraulic Direct Drive Cylinder System
· Free 8-PC Pad Extension Kit(33mm/127mm)
· Automatic Arm Restraints
· Single Lock Release
· Mounting Hardware Included
· Shipping Weight: 750kg.
![](/uploads/allimg/190923/1-1Z923093455M7.jpg)
![](/uploads/allimg/190923/1-1Z923093535V1.jpg)
![](/uploads/allimg/190923/1-1Z923093614242.jpg)
· 4500kg Capacity
· Double “S” Column Design
· Symmetric/Asymmetric Installation
· Symmetric Arms
· Clear Floor Type
· Dual Hydraulic Direct Drive Cylinder System
· Free 8-PC Pad Extension Kit(33mm/127mm)
· Automatic Arm Restraints
· Single Lock Release
· Mounting Hardware Included
· Shipping Weight: 750kg.
![](/uploads/allimg/190923/1-1Z923093455M7.jpg)
![](/uploads/allimg/190923/1-1Z923093535V1.jpg)
![](/uploads/allimg/190923/1-1Z923093614242.jpg)
________________________________________________________________________________________________________________

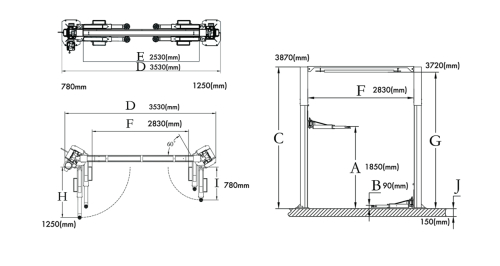

Specifications:
Specifications:
Name | L-2C-45SX | |
Lifting Method | Chain Drive | |
Lock/Release System | Single Point | |
Lifting Capacity | 4500kg(9000lb) | |
Lifting Height drop-in pad | A | 1850mm(70.9") |
Pad Min.height drop-in pad | B | 90mm(3.5") |
Height Overall | C | 3870mm(152.3") |
Width Overall | D | 3530mm(140") |
Drive Through | E | 2530mm(100")/2455mm(97”) |
Width Between Columns | F | 2830mm(111.4") |
Limit switch height | G | 3720mm(146.5”) |
Arm Reach Front | H | 1250mm(49.2")) |
Arm Reach Rear | I | 780mm(30.7") |
Concrete Thickness | J | 150mm(5.9") |
Lifting Time | 50s | |
Motor Power | 2.2kw(3HP) |
![](/uploads/allimg/190222/1-1Z222104R5422.jpg)
![](/uploads/allimg/190222/1-1Z222104Ja25.jpg)

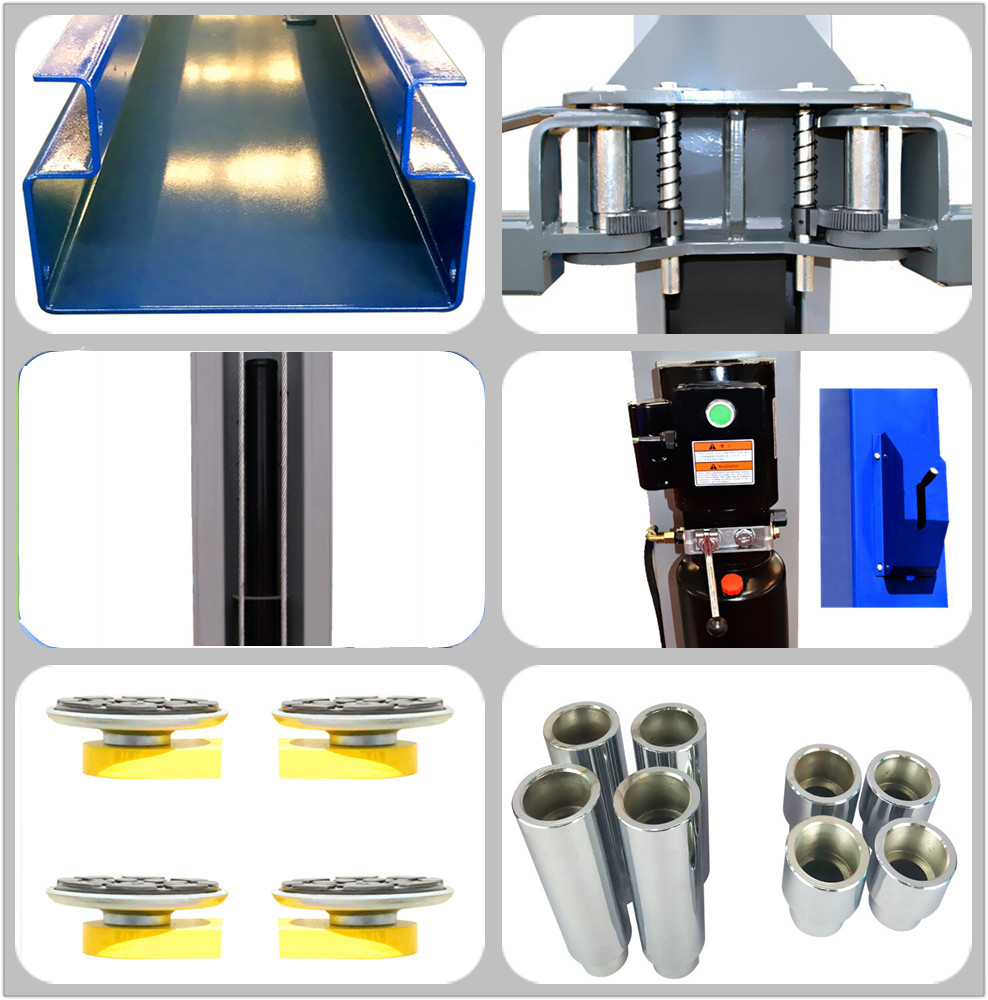

PARTS
![](/uploads/allimg/190923/1-1Z923094421X3.jpg)
![](/uploads/allimg/190923/1-1Z9230945013X.png)
![](/uploads/allimg/190923/1-1Z923094421X3.jpg)
![](/uploads/allimg/190923/1-1Z9230945013X.png)
![](/uploads/allimg/190923/1-1Z9231000443D.png)
![](/uploads/allimg/190923/1-1Z923100100118.png)
________________________________________________________________________________________________________________

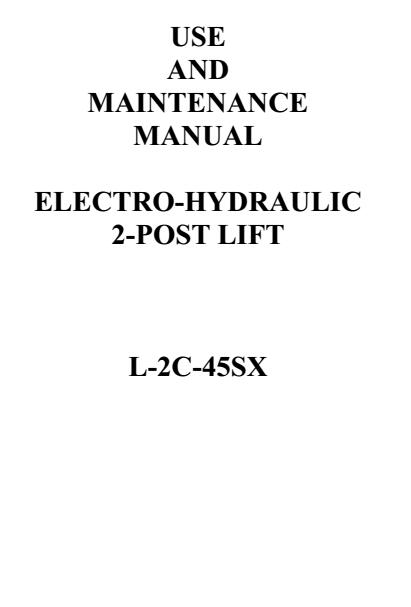

Manual
Manual
![](/uploads/allimg/160621/1-16062111303W12.jpg)
![](/uploads/allimg/190220/1-1Z220144259D7.png)
Click the image above to download the manual for L-2C-45SX
Ask our sales representitives for download password please. Thank you.
