L-2C-45E 4.5T ELECTRIC
Model No.: L-2C-45E
Chain Drive Electric Lock Release

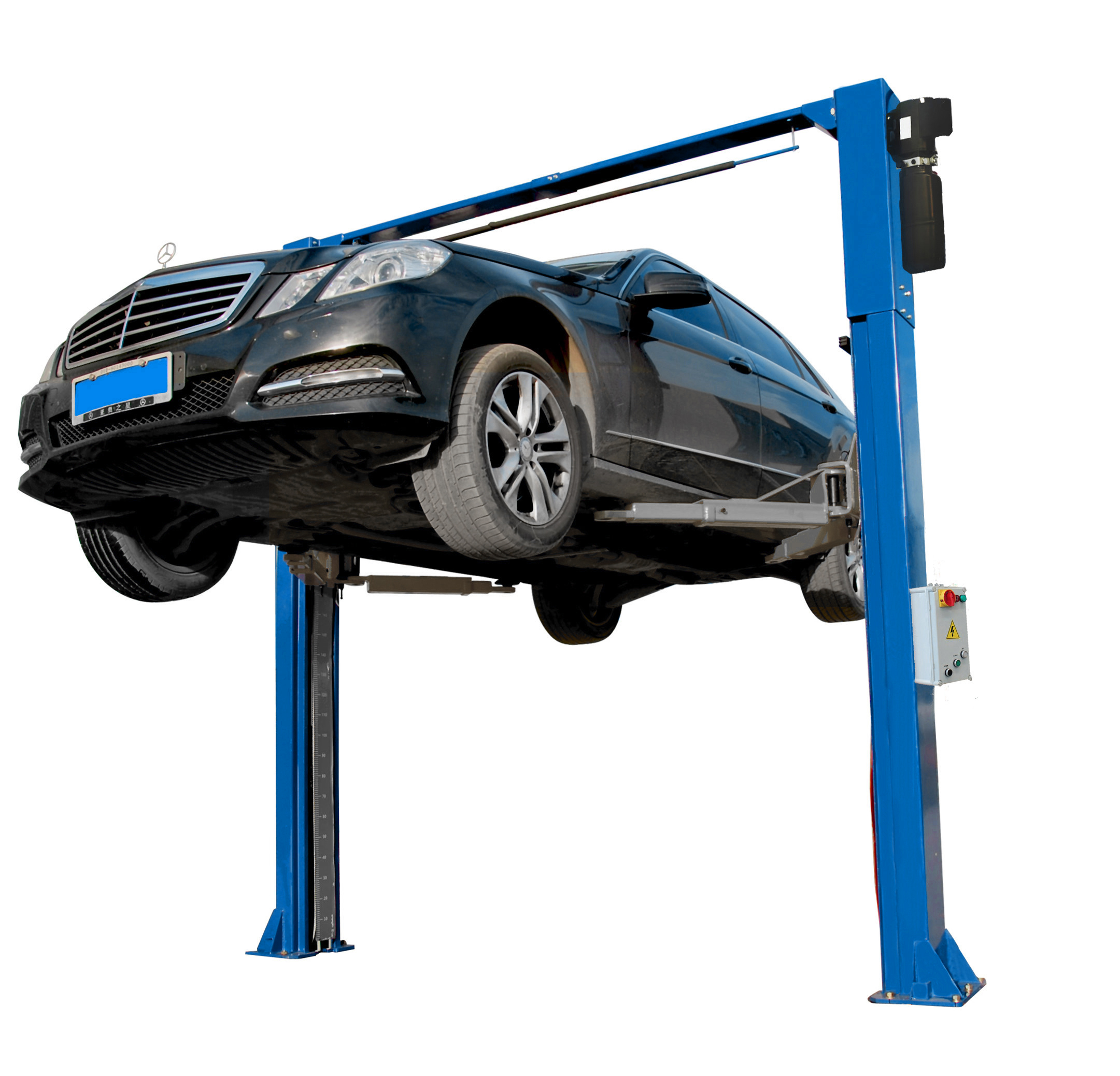

2 POST CAR LIFT L-2C-45E 4.5T/10000LB

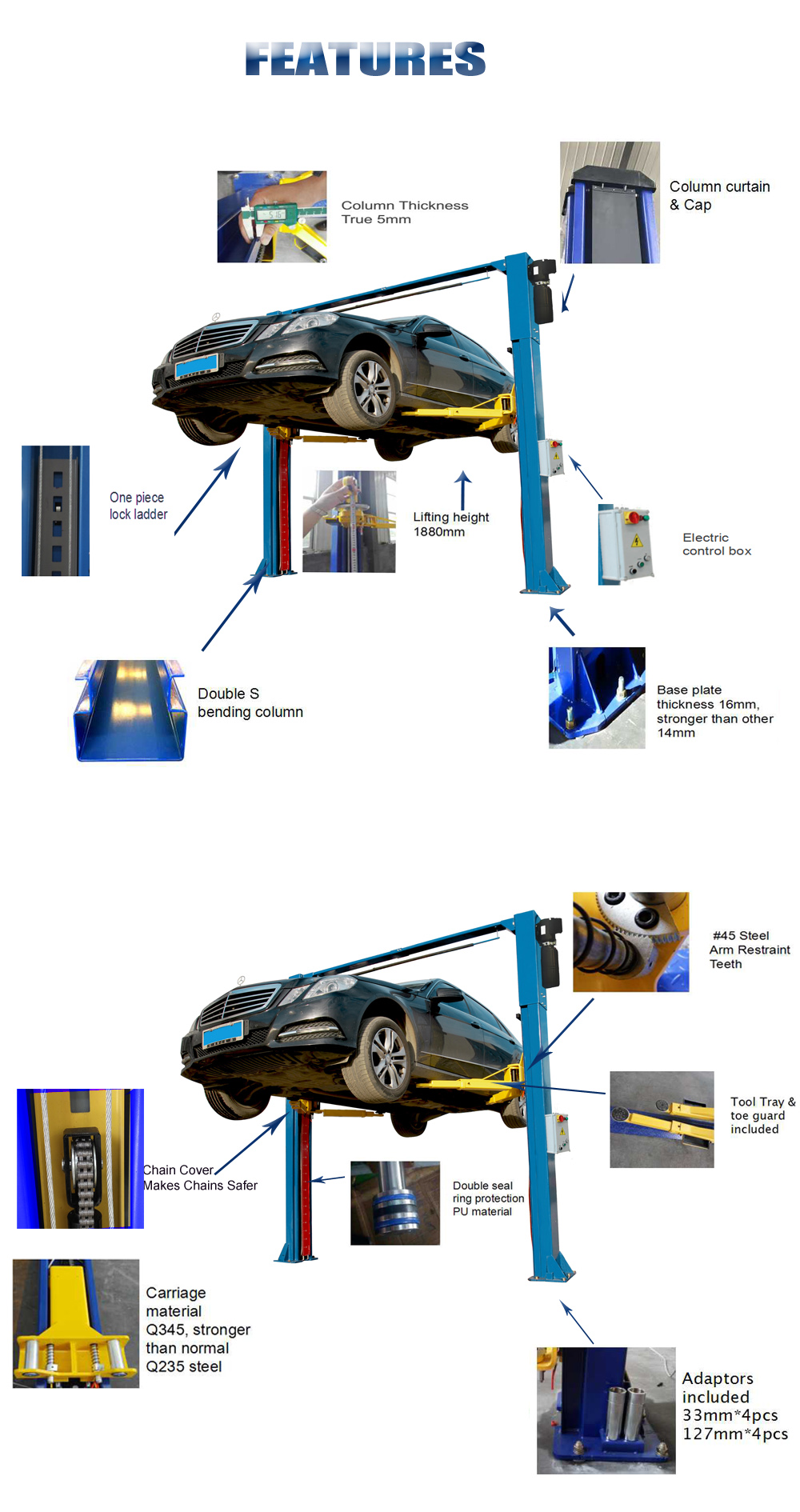

· 4500kg Capacity
· Double “S” Column Design
· Symmetric Arms
· Clear Floor Type
· Dual Hydraulic Chain Roller Drive Cylinder System
· Free 8-PC Pad Extension Kit(33mm/127mm)
· Automatic Arm Restraints
· Electric Lock Release
· Mounting Hardware Included
· Shipping Weight: 670kg.
· 4500kg Capacity
· Double “S” Column Design
· Symmetric Arms
· Clear Floor Type
· Dual Hydraulic Chain Roller Drive Cylinder System
· Free 8-PC Pad Extension Kit(33mm/127mm)
· Automatic Arm Restraints
· Electric Lock Release
· Mounting Hardware Included
· Shipping Weight: 670kg.
________________________________________________________________________________________________________________

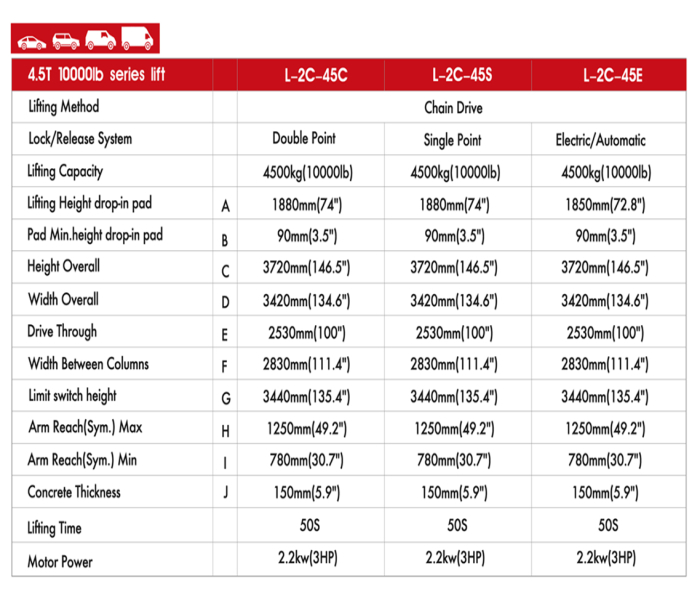

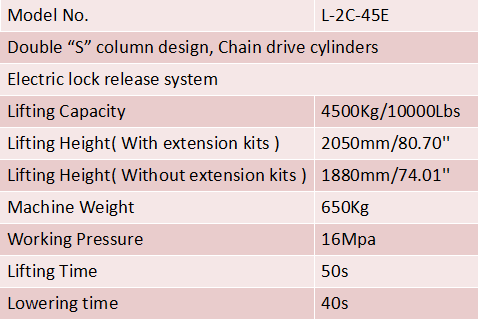

Specifications:
Specifications:

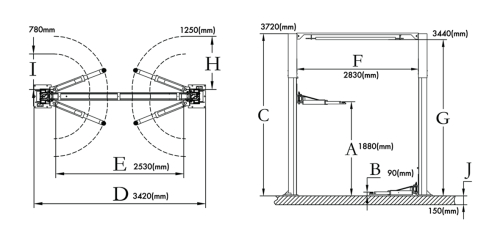

| Name | L-2C-45E | |
| Lifting Method | Chain Drive | |
| Lock/Release System | Electric | |
| Lifting Capacity | 4500kg(9000lb) | |

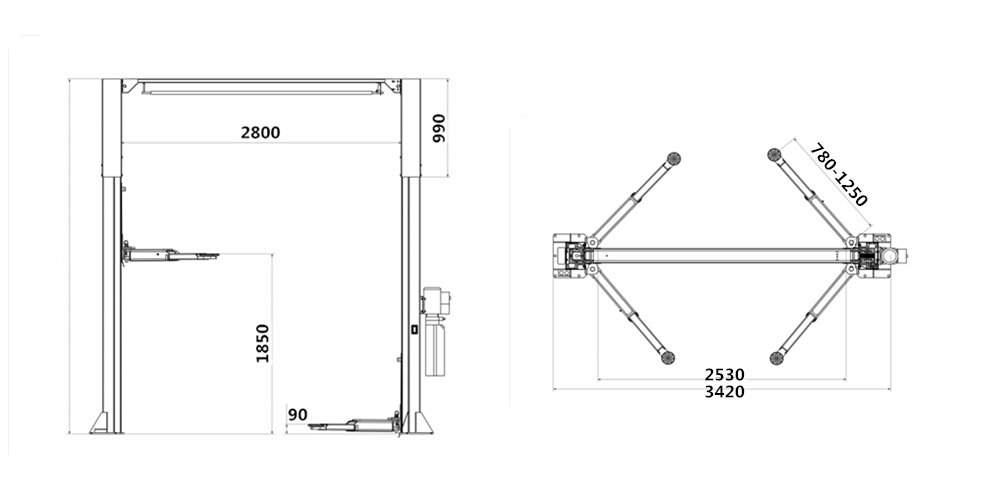

| Lifting Height drop-in pad | A | 1850mm(72.8") |
| Pad Min.height drop-in pad | B | 90mm(3.5") |
| Height Overall | C | 3720mm(146.5") |
| Width Overall | D | 3420mm(134.6") |
| Drive Through | E | 2530mm(100") |
| Width Between Columns | F | 2830mm(110") |
| Limit switch height | G | 3440mm(135.4”) |
| Arm Reach(Sym.) Max | H | 1250mm(49.2")) |
| Arm Reach(Sym.) Min | I | 780mm(30.7") |
| Concrete Thickness | J | 150mm(5.9") |
| Lifting Time | 50s | |
| Motor Power | 2.2kw(3HP) | |
________________________________________________________________________________________________________________

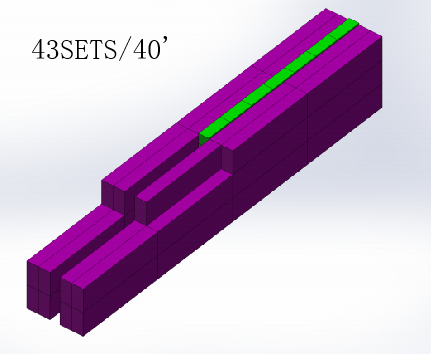

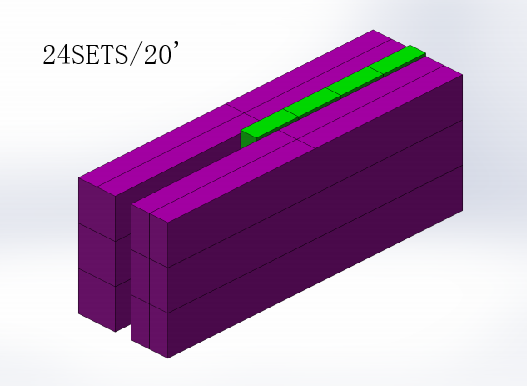

Package Size(MM)
________________________________________________________________________________________________________________
Standard Parts
Optioins
Standard Parts
Optioins
________________________________________________________________________________________________________________

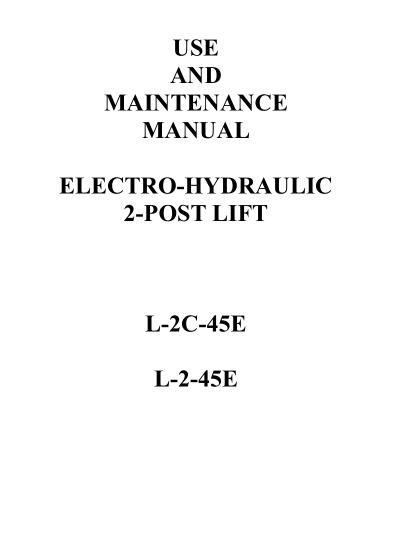

Manual
Click the image above to download the manual for L-2C-45E
Ask our sales representitives for download password please. Thank you.
Manual
Click the image above to download the manual for L-2C-45E
Ask our sales representitives for download password please. Thank you.
________________________________________________________________________________________________________________
Catalogue
Click here to download catalogue
Ask our sales representitives for download password please. Thank you.
Catalogue
Click here to download catalogue
Ask our sales representitives for download password please. Thank you.
