L-2-45D 4.5T Double Lock

Model No.: L-2-45D

Features JFL-2-45D isa n double release2postlift,withdoublehydrauliccylinder. ItisCEapproved,nowbests

Related Products

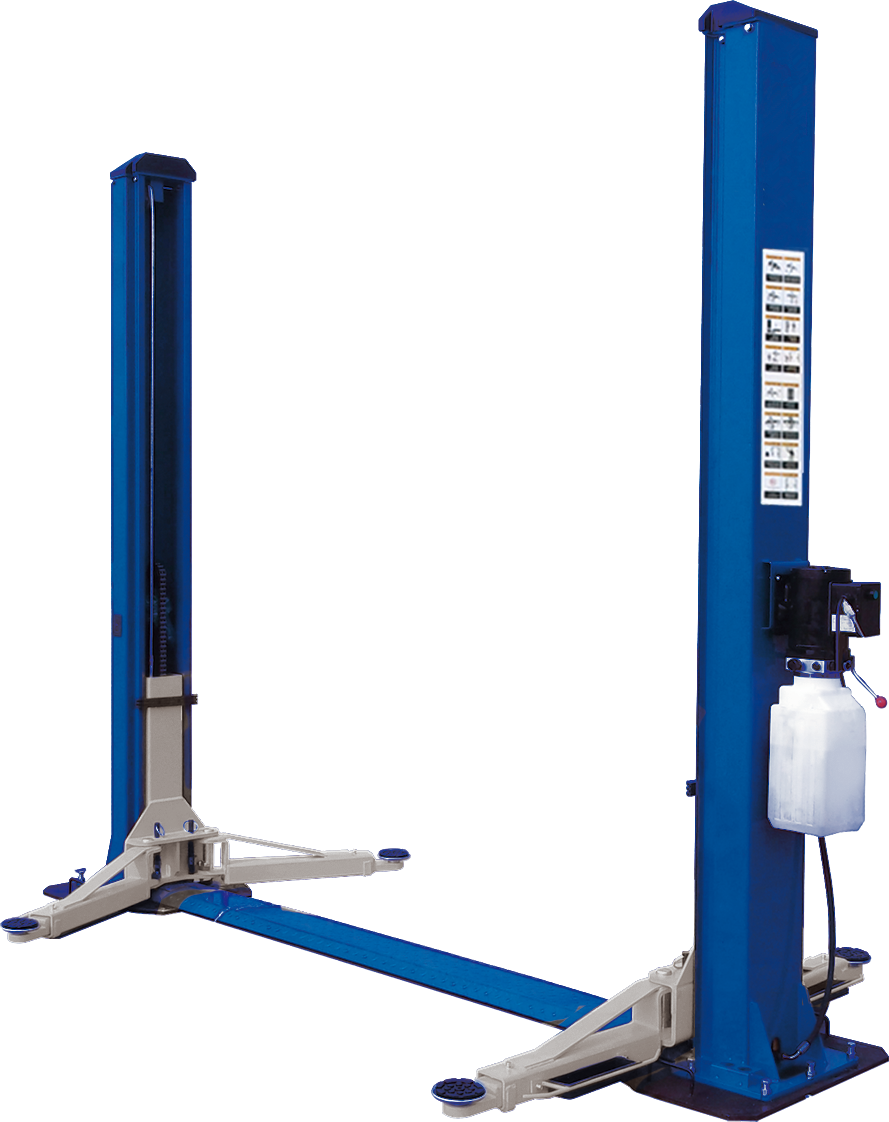

2 POST CAR LIFT L-2-45D 4.5T

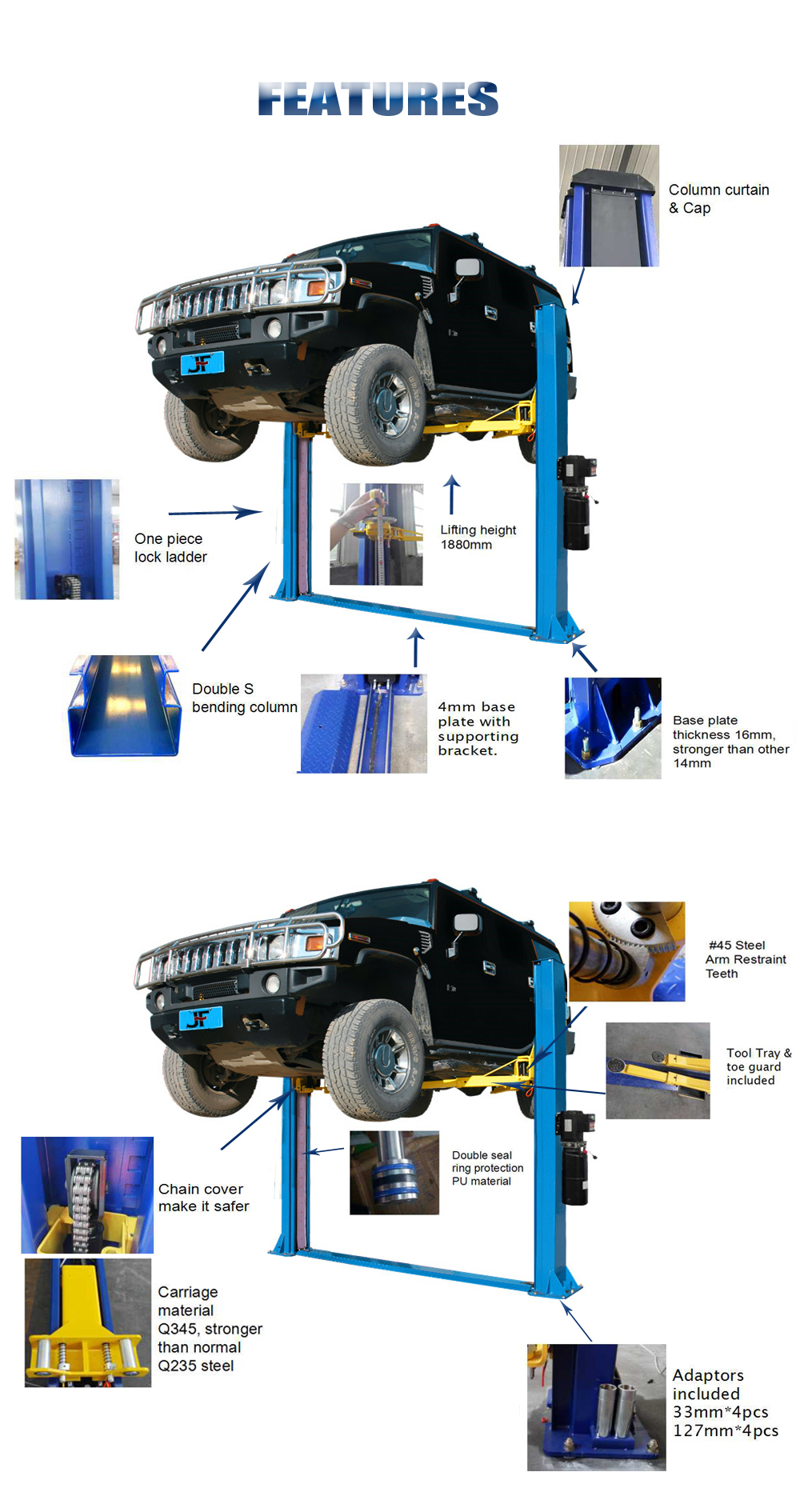

FEATURES
· 4500kg Capacity
· Double “S” Column Design
· Symmetric Arms
· Base Plate Type
· Dual Hydraulic Chain Roller Drive Cylinder System
· Free 8-PC Pad Extension Kit(33mm/127mm)
· Automatic Arm Restraints
· Double Point Lock Release
· Designed For Low Ceiling Clearance Columns(2880mm)
· Mounting Hardware Included
· Shipping Weight: 620kg.



________________________________________________________________________________________________________________

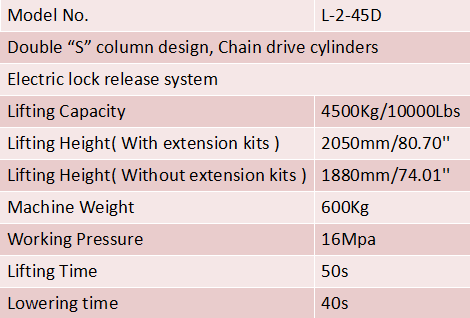

Specifications:

Name   L-2-45D
Lifting Method   Chain Drive
Lock/Release System   Double Point
Lifting Capacity   4500kg(9000lb)

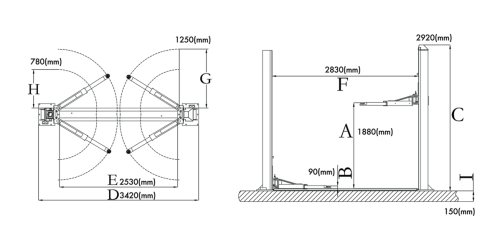

Lifting Height drop-in pad A 1880mm(74")
Pad Min.height drop-in pad B 90mm(3.5")
Height Overall C 2920mm(115")
Width Overall D 3420mm(134.6")
Drive Through E 2530mm(100")
Width Between Columns F 2830mm(111.4")
Arm Reach(Sym.) Max G 1250mm(49.2")
Arm Reach(Sym.) Min H 780mm(30.7")
Concrete Thickness I 150mm(5.9")
Lifting Time   50s
Motor Power   2.2kw(3HP)

________________________________________________________________________________________________________________


Package Size(MM)



Package Pictures





20' Container Load Solution(24 sets)


40' Container Load Soltuion(43 sets)


________________________________________________________________________________________________________________



Standard Parts

· Toe Guards 4pcs
· Tool Trays 4pcs
· Extension Kits Holders 2 pcs
· Column Caps 2 pcs
· Curtains 2 pcs

Optioins

· 3-stage screw-up pads
·  70mm & 100mm extension kits(For screw pads)
· Super Symmetrical arms(3 stage front arms & long 2 stage rear arms)

________________________________________________________________________________________________________________



Manual




Click the image above to download manual book for L-2-45D

Ask our sales representitives for download password please. Thank you.



________________________________________________________________________________________________________________




Catalogue


Click here to download catalogue

Ask our sales representitives for download password please. Thank you.
