L-2C-45C 4.5T DOUBLE POINT

Model No.: L-2C-45C

Chain Drive Double Lock

Related Products

Features
Technical Data
Parts
Package
Manual Download
Catalogue
Video

2 POST CAR LIFT L-2C-45C 4.5T/10000LB

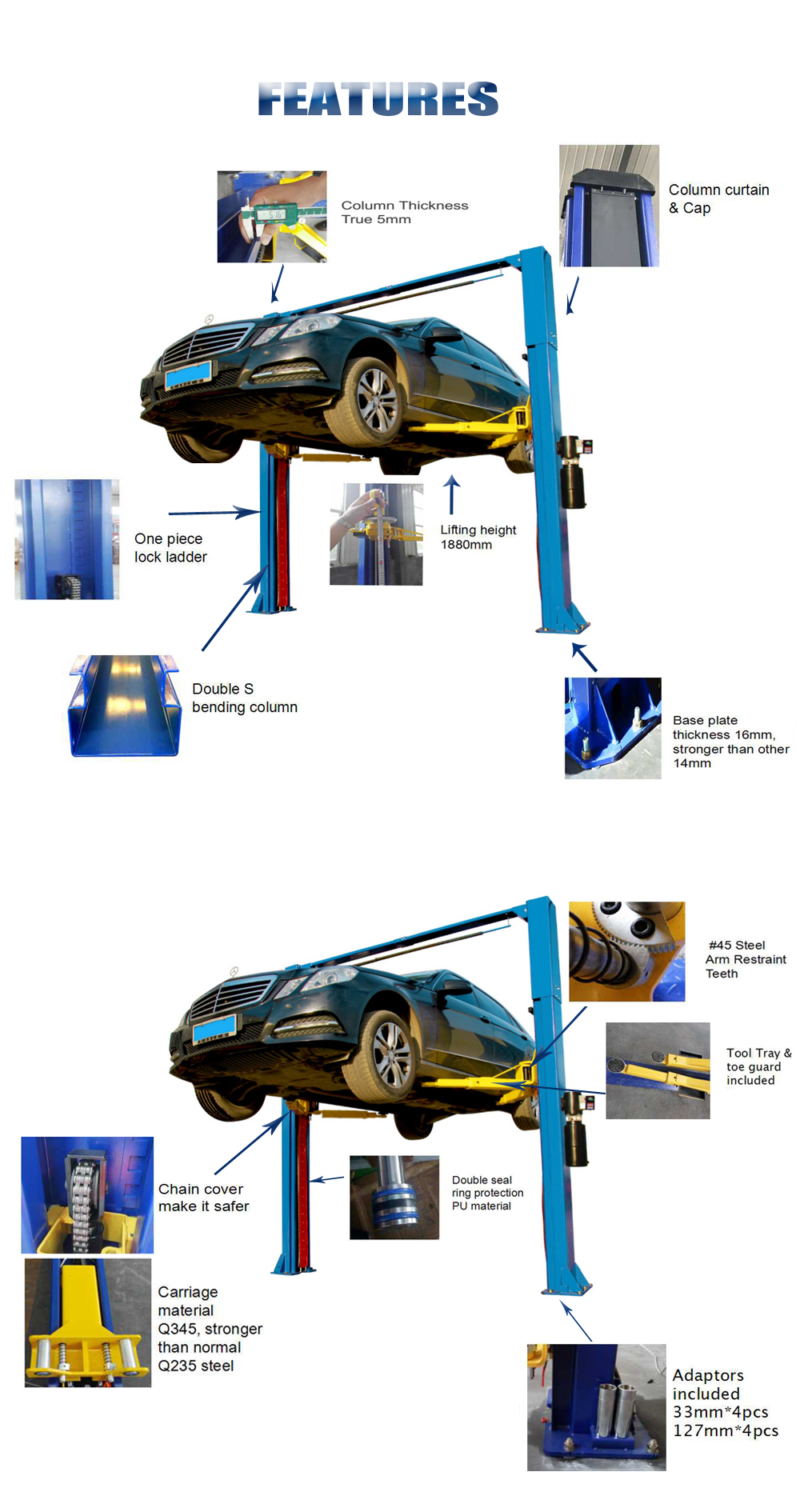

FEATURES

· 4500kg Capacity
· Double “S” Column Design
· Symmetric Arms
· Clear Floor Type
· Dual Hydraulic Chain Roller Drive Cylinder System
· Free 8-PC Pad Extension Kit(33mm/127mm)
· Automatic Arm Restraints
· Double Point Lock Release
· Mounting Hardware Included
· Shipping Weight: 680kg.

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

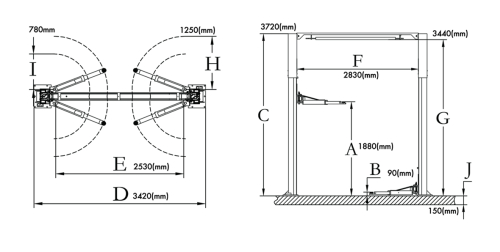

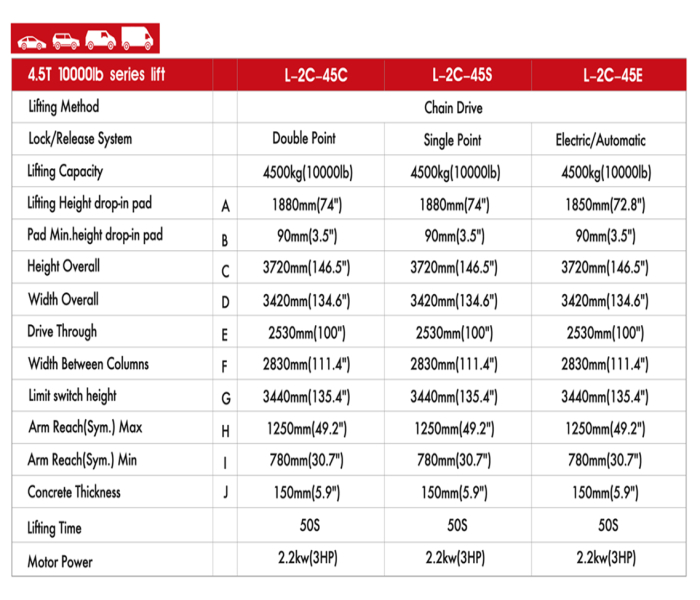

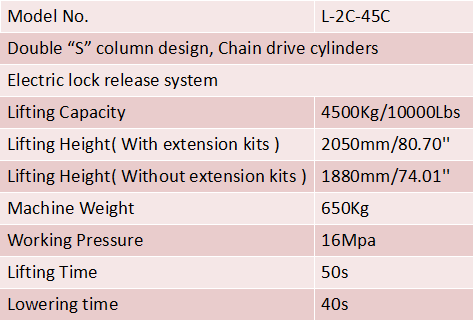

SPECIFICATIONS

Name	L-2C-45C
Lifting Method		Chain Drive
Lock/Release System		Double Point
Lifting Capacity		4500kg(9000lb)
Lifting Height drop-in pad	A	1880mm(74")
Pad Min.height drop-in pad	B	90mm(3.5")
Height Overall	C	3720mm(146.5")
Width Overall	D	3420mm(134.6")
Drive Through	E	2530mm(100")
Width Between Columns	F	2830mm(110")
Limit switch height	G	3440mm(135.4”)
Arm Reach(Sym.) Max	H	1250mm(49.2"))
Arm Reach(Sym.) Min	I	780mm(30.7")
Concrete Thickness	J	150mm(5.9")
Lifting Time		50s
Motor Power		2.2kw(3HP)

PARTS

PACKAGE

20' Container Load Solution(24 sets)

40' Container Load Soltuion(43 sets)

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

MANUAL

cLI
Click the image above to download the manual book for L-2C-45C

Ask our sales representitives for download password please. Thank you.

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

CATALOGUE

Click here to download catalogue

Ask our sales representitives for download password please. Thank you.

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

VIDEO

Our car lifts are tested by CE standard(1.15 times dynamtic loading / 1.5 time static loading)
