L-2-45S 4.5T SINGLE POINT

Model No.: L-2-45S

Chain Drive Single Lock

Related Products

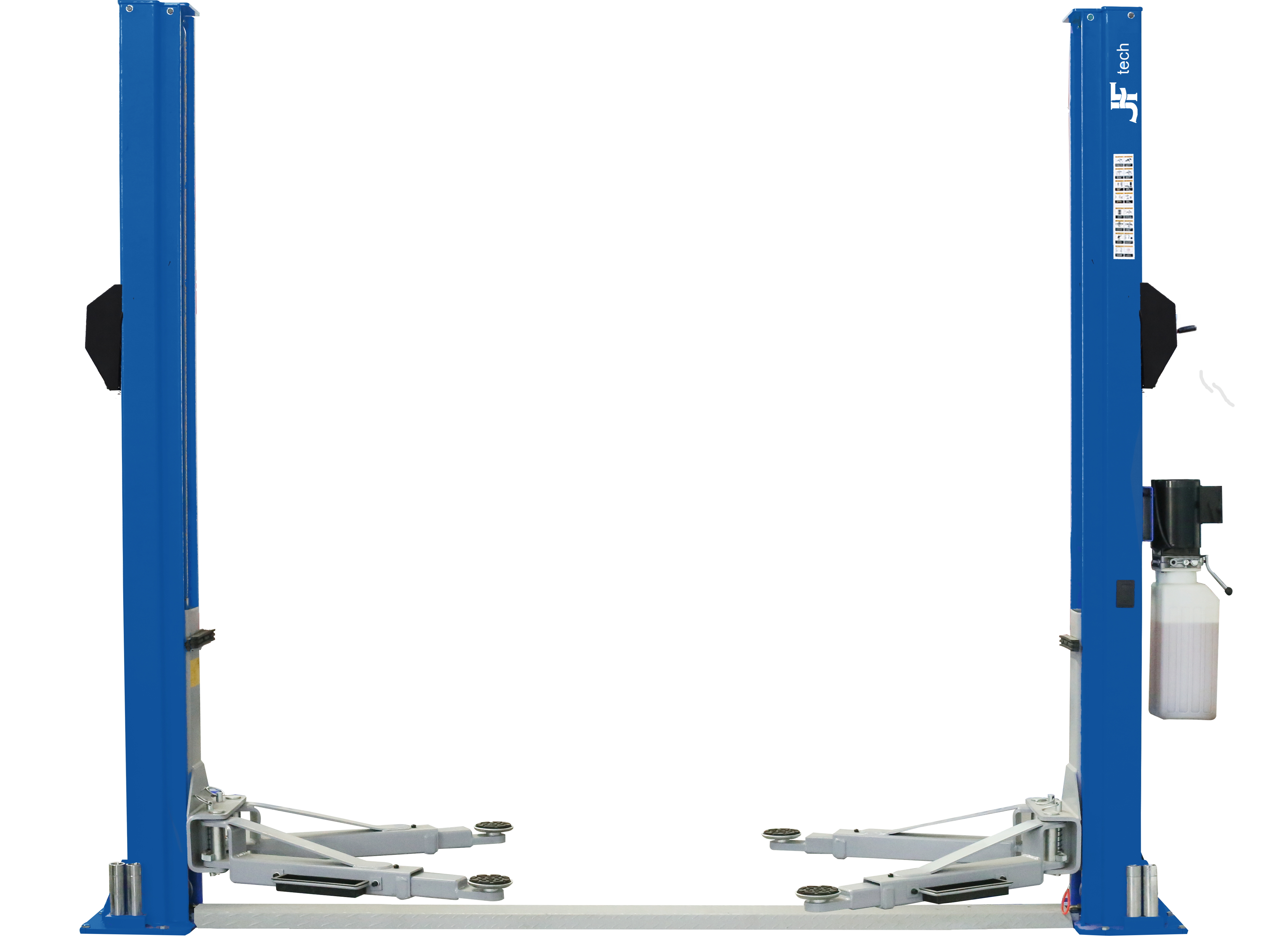

2 POST CAR LIFT L-2-45S 4.5T/10000LB

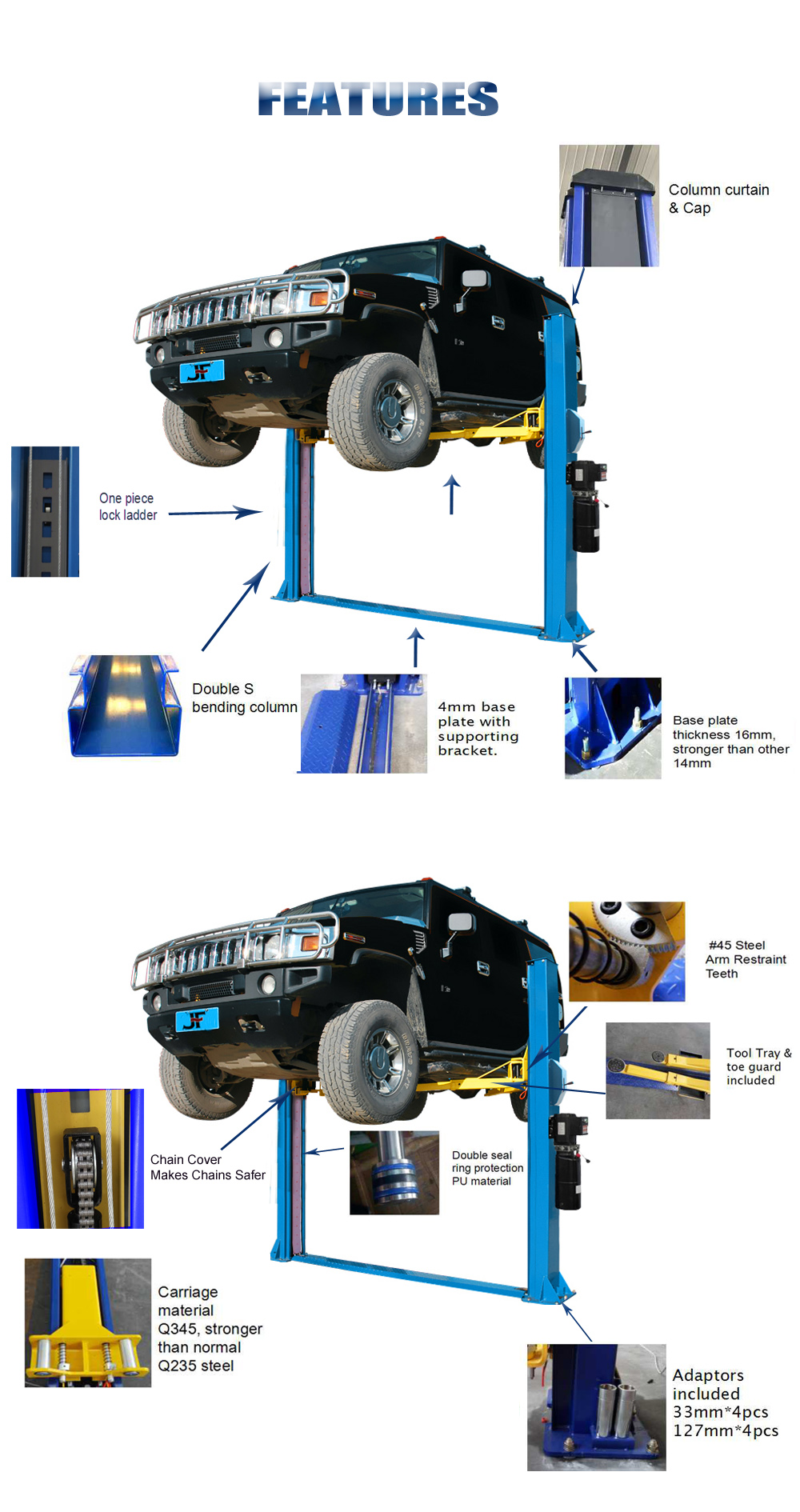

· 4500kg Capacity
· Double “S” Column Design
· Symmetric Arms
· Base Plate Type
· Dual Hydraulic Chain Roller Drive Cylinder System
· Free 8-PC Pad Extension Kit(33mm/127mm)
· Automatic Arm Restraints
· Single Point Lock Release

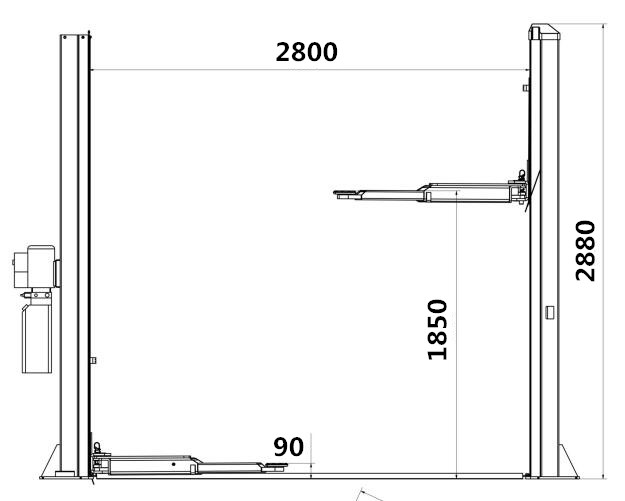

· Designed For Low Ceiling Clearance Columns(2880mm)
· Mounting Hardware Included
· Shipping Weight: 620kg.




________________________________________________________________________________________________________________

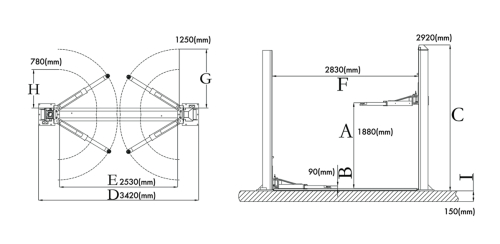

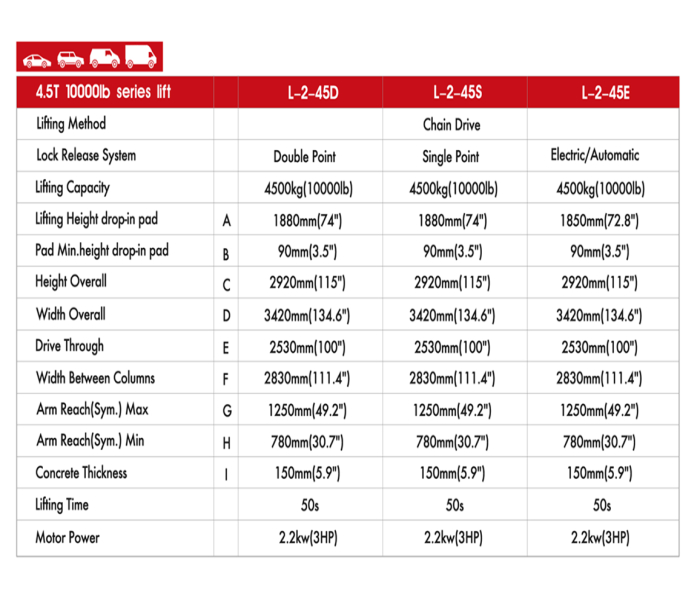

Specifications:

Name   L-2-45S
Lifting Method   Chain Drive
Lock/Release System   Single Point
Lifting Capacity   4500kg(9000lb)
Lifting Height drop-in pad A 1880mm(74")
Pad Min.height drop-in pad B 90mm(3.5")
Height Overall C 2920mm(115")
Width Overall D 3420mm(134.6")
Drive Through E 2530mm(100")
Width Between Columns F 2830mm(111.4")
Arm Reach(Sym.) Max G 1250mm(49.2")
Arm Reach(Sym.) Min H 780mm(30.7")
Concrete Thickness I 150mm(5.9")
Lifting Time   50s
Motor Power   2.2kw(3HP)

________________________________________________________________________________________________________________


Package Size(MM)











________________________________________________________________________________________________________________


Standard Parts

Optioins



Manual


Click the image above to download manual book for L-2-45S
Ask our sales representitives for download password please. Thank you.
Manual

Catalogue


Catalogue

Click here to download catalogue

Ask our sales representitives for download password please. Thank you.CatalogueCatalogue
