L-2C-55E 5.5 T, ELECTRIC LOCK
Model No.: L-2C-55E
2 POST CAR LIFT L-2C-55E 5.5T/12000LB 5 500kg Capacity Double CColumn Design SymmetricArms Clear Floo
2 POST CAR LIFT L-2C-55E 5.5T/12000LB
· 5500kg Capacity
· Double “C” Column Design
· Symmetric Arms
· Clear Floor Type
· Dual Hydraulic Chain Roller Drive Cylinder System
· Automatic Arm Restraints
· Electric Lock Release
· Mounting Hardware Included
· Shipping Weight: 750kg.
· 5500kg Capacity
· Double “C” Column Design
· Symmetric Arms
· Clear Floor Type
· Dual Hydraulic Chain Roller Drive Cylinder System
· Automatic Arm Restraints
· Electric Lock Release
· Mounting Hardware Included
· Shipping Weight: 750kg.
Specifications:

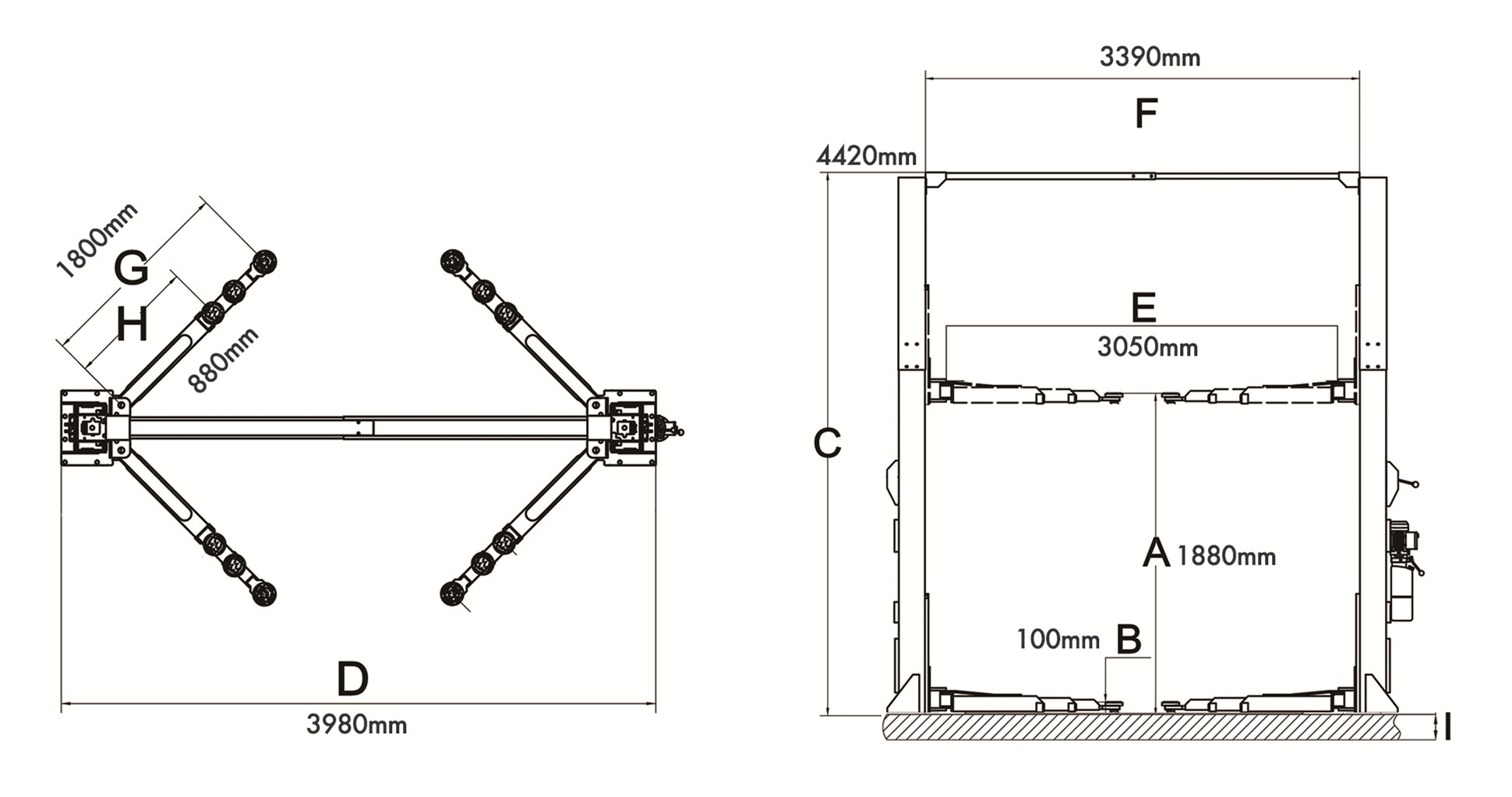

| Name | L-2C-55E | |
| Lifting Method | Chain Drive | |
| Lock/Release System | Electric | |
| Lifting Capacity | 5500kg(12000lb) | |
| Lifting Height drop-in pad | A | 1880mm(74") |
| Pad Min.height drop-in pad | B | 100mm(3.9") |
| Height Overall | C | 4420mm(174") |
| Width Overall | D | 3980mm(156.7") |
| Drive Through | E | 3050mm(120") |
| Width Between Columns | F | 3390mm(133.5") |
| Arm Reach(Sym.) Max | G | 1800mm(70.9")) |
| Arm Reach(Sym.) Min | H | 880mm(34.6") |
| Concrete Thickness | I | 150mm(5.9") |
| Lifting Time | 50s | |
| Motor Power | 2.2kw(3HP) | |
